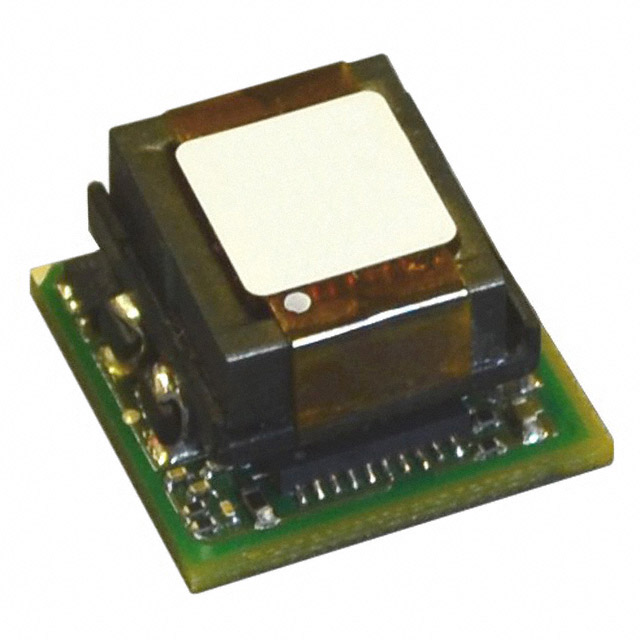

Specification	FGSD12SR6006NA

Applications	ITE (Commercial)
Control Features	Enable, Active Low
Current - Output (Max)	6 A
Efficiency	93.8 %
Features	OCP, Remote On/Off, OTP, UVLO
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Size / Dimension Height	0.29 in
Size / Dimension Length	0.48 in
Size / Dimension Width	0.48 in
Type	Digital, Non-Isolated PoL Module
Voltage - Input (Max)	14.4 V
Voltage - Input (Min)	3 V
Voltage - Output 1 (Max)	5.5 V
Voltage - Output 1 (Min)	0.45 V
