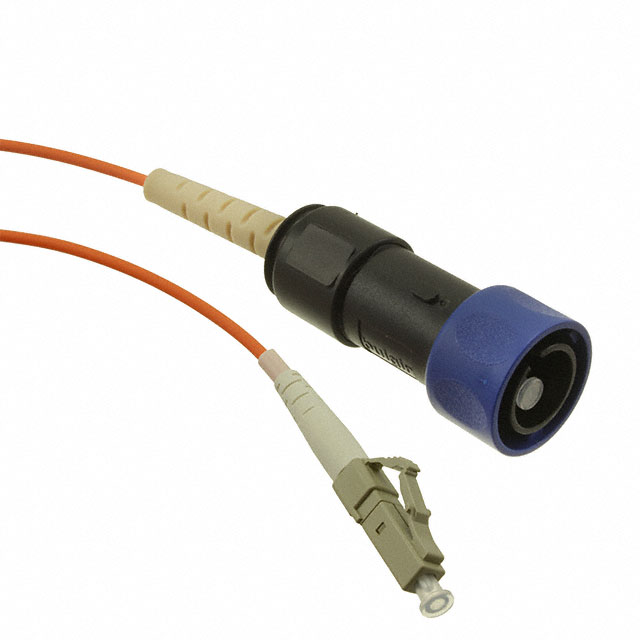

Specification	PXF4050BAA

1st Connector	LC
2nd Connector	LC
Bend Radius	30 mm
Cable Diameter	0.08 "
Cable Type	Buffered Fiber
Color - Cable	Orange
Color - Connectors	Blue, Black
Features	Low Smoke, IP66, IP69K, IP68
Fiber Cladding Diameter	125 µm
Fiber Core Diameter	62.5 µm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Length - Overall	16.4 ft
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Type	OM1, Simplex, Multimode

buccaneer-4000 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Housing Color	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Primary Material	Contact Type	Note	Mounting Feature	Mounting Type	Type	Includes Total Count	Includes	Material Flammability Rating	Fastening Type	Features	Number of Positions	Position Types	Shell Material	Contact Shape	Contact Finish - Mating	Contact Material	Termination	Current Rating	Color	Voltage Rating	Voltage Rating (Type)
BULGIN LIMITED PXP4013/04S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount Through Hole	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	4	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/08S	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Female Sockets	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	8	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/04P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount Through Hole	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	4	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/10P/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Male Pins Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	10	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/03P	120 °C	-40 °C	Unshielded	Black	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Receptacle Housing	Plastic	Crimp Solder Cup	Contacts Not Included	Bulkhead Front Side Nut	Panel Mount	For Male Pins	3 pcs	Connector Nut Washer	UL94 V-0	Bayonet Lock	UV Resistant	3	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)	Circular
BULGIN LIMITED PXP4013/12P/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Male Pins Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/12S/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Female Sockets Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	12	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC
BULGIN LIMITED PXP4013/10S/PC	120 °C	-40 °C	Unshielded		Keyed	Dust Tight Water Resistant Waterproof	IP66 IP68 IP69K	Female Sockets Receptacle	Plastic			Bulkhead Front Side Nut	Panel Mount Through Hole				UL94 V-0	Bayonet Lock	UV Resistant	10	Power	Halogen Free Polycarbonate/Polybutylene Terephthalate (PBT)		Gold	Copper Alloy	Solder	3 A	Black	600 V	DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

PXF4050BAA | Datasheet
