RNHT0805BTE22K0
ActiveStackpole Electronics Inc
RES AUTO, 22 KOHM, 0805, 0.1%, 2
RNHT0805BTE22K0
ActiveStackpole Electronics Inc
RES AUTO, 22 KOHM, 0805, 0.1%, 2
Description
General part information
RNHT0805BTE22K0

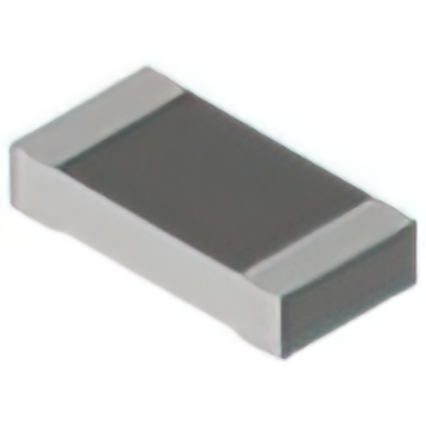

22 kOhms ±0.1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Anti-Sulfur, Automotive AEC-Q200 Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNHT0805BTE22K0 |
|---|---|
| Composition | Thin Film |
| Features | Automotive AEC-Q200, Anti-Sulfur |
| Height - Seated (Max) | 0.026 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Power (Watts) | 0.125 W |
| Power (Watts) Options | 1/8W |
| Ratings | AEC-Q200 |
| Resistance | 22 kOhm |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
