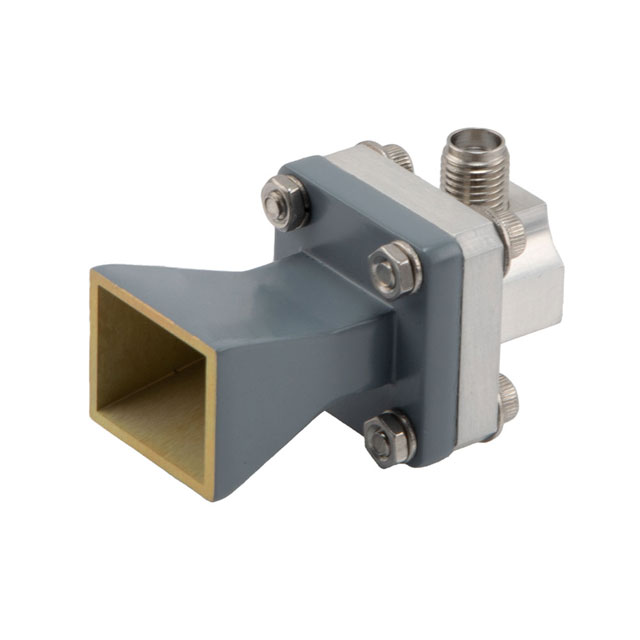

PEWAN042-10SF
ActivePasternack
WR42 GAIN HRN 18-26.5GHZ 10DBI
PEWAN042-10SF
ActivePasternack
WR42 GAIN HRN 18-26.5GHZ 10DBI
Description
General part information
PEWAN042-10SF
RF ANTENNA General Purpose Horn SMA Female Waveguide Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWAN042-10SF |
|---|---|
| Antenna Type | Horn |
| Applications | General Purpose |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 22.2 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 26.5 GHz |
| Frequency Range (Min) | 18 GHz |
| Gain | 10 dBi |
| Height (Max) | 0.882 in |
| Mounting Type | Waveguide Mount |
| Number of Bands | 1 |
| RF Family/Standard | Waveguide |
| Termination Type | SMA Female |
| VSWR | 1.3 |
