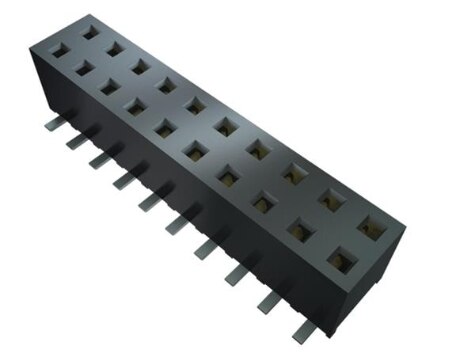

Specification	MMS-114-02-H-SH

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 µin
Contact Type	Female Socket
Current Rating (Per Contact)	3.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.085 in
Mounting Type	Right Angle, Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Style	Board, Board or Cable
Termination	Solder

MMS Series

...

Part	Insulation Height	Current Rating (Per Contact)	Pitch - Mating	Fastening Type	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Row Spacing - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish - Mating	Termination	Contact Length - Post	Insulation Color	Number of Positions	Style	Number of Rows	Connector Type	Contact Finish - Post	Number of Positions Loaded	Insulation Material	Contact Material	Contact Shape	Features	Number of Positions Loaded
Samtec Inc. MMS-111-01-LM-DH	0.157 in	3.9 A	0.079 in	Push-Pull	10 µin	Right Angle Through Hole	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder	0.12 in	Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-02-L-DV-TR	0.177 in	3.9 A	0.079 in	Push-Pull	10 µin	Surface Mount	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder		Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-01-LM-DV	0.175 in	3.9 A	0.079 in	Push-Pull	10 µin	Through Hole	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder	0.115 in	Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-02-L-SV	0.177 in	3.9 A	0.079 in	Push-Pull	10 µin	Surface Mount	Female Socket		125 °C	-55 °C	Gold	Solder		Black	11	Board Board or Cable	1	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-02-L-SV-03-K	0.177 in	3.9 A	0.079 in	Push-Pull	10 µin	Surface Mount	Female Socket		125 °C	-55 °C	Gold	Solder		Black	11	Board Board or Cable	1	Receptacle	Tin		Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Pick and Place	10
Samtec Inc. MMS-111-01-L-DH	0.157 in	3.9 A	0.079 in	Push-Pull	10 µin	Right Angle Through Hole	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder	0.12 in	Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-02-L-SV-P	0.177 in	3.9 A	0.079 in	Push-Pull	10 µin	Surface Mount	Female Socket		125 °C	-55 °C	Gold	Solder		Black	11	Board Board or Cable	1	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square	Pick and Place
Samtec Inc. MMS-111-01-F-DV	0.175 in	3.9 A	0.079 in	Push-Pull	3 µin	Through Hole	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder	0.115 in	Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-02-L-DH	0.157 in	3.9 A	0.079 in	Push-Pull	10 µin	Right Angle Surface Mount	Female Socket	0.079 in	125 °C	-55 °C	Gold	Solder		Black	22	Board Board or Cable	2	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
Samtec Inc. MMS-111-01-L-SH	0.079 in	3.9 A	0.079 in	Push-Pull	10 µin	Right Angle Through Hole	Female Socket		125 °C	-55 °C	Gold	Solder	0.12 in	Black	11	Board Board or Cable	1	Receptacle	Tin	All	Liquid Crystal Polymer (LCP)	Phosphor Bronze	Square
