Technical Specifications
Parameters and characteristics for this part
| Specification | AUU105-4652 |
|---|---|
| Current Rating (Max) | 1 A |
| DC Resistance (DCR) (Max) | 300 mOhm |
| Height (Max) | 0.886 in |
| Inductance | 370 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.748 in |
| Size / Dimension Width | 0.669 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.50 | 30d+ |
| 5 | $ 3.25 | |||
| 10 | $ 2.98 | |||
CAD
3D models and CAD resources for this part
Description
General part information

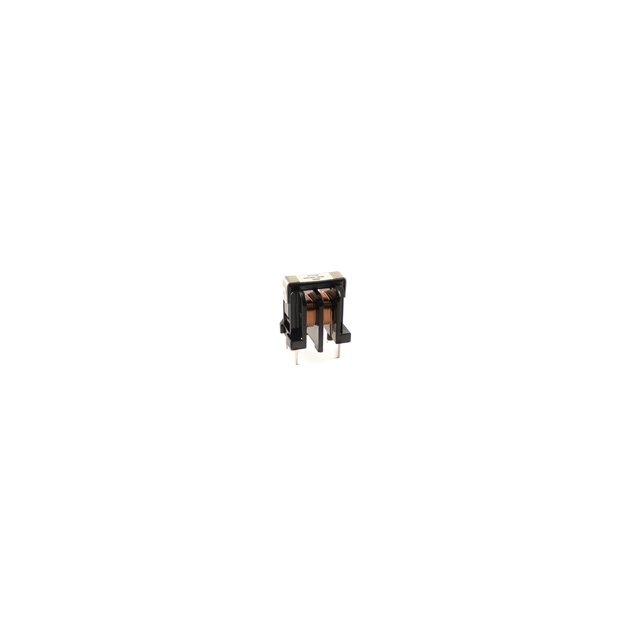

AUU105-4652
370 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 1A DCR 300mOhm
