3180-3SG-524

Active

Conxall/Switchcraft

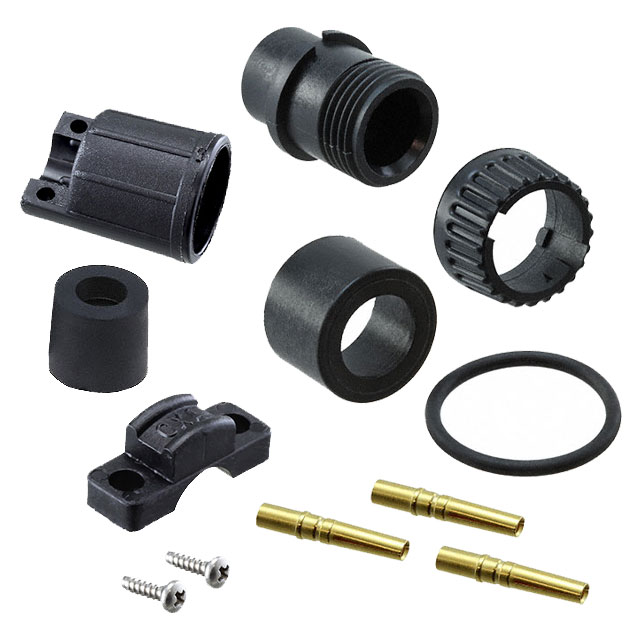

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3180-3SG-524

Active

Conxall/Switchcraft

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3180-3SG-524	3180-3S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	6.86 mm	6.86 - 7.37 mm
Cable Opening [Max] [diameter]	0.27 in	0.27 - 0.32 in
Cable Opening [Min] [diameter]	0.24 in	0.24 - 0.3 in
Cable Opening [Min] [diameter]	6.1 mm	6.1 - 7.62 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

3180-3S Series

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Contact Finish - Mating	Color	Features	Mounting Type	Backshell Material, Plating	Primary Material	Ingress Protection	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Material	Voltage Rating	Orientation	Fastening Type	Connector Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3180-3SG-3DC	Gold	Black	Backshell	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug
Conxall/Switchcraft 3180-3SG-524	Gold	Black	Backshell, Cable Clamp	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug	0.24 in	6.86 mm	6.1 mm	0.27 in
Conxall/Switchcraft 3180-3SG-318	Gold	Black	Backshell	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-3SG-330	Gold	Black	Backshell	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug	0.3 in		7.62 mm	0.32 in					8.13 mm
Conxall/Switchcraft 3180-3SG-530	Gold	Black	Backshell, Cable Clamp	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug	0.3 in		7.62 mm	0.32 in					8.13 mm
Conxall/Switchcraft 3180-3SG-518	Gold	Black	Backshell, Cable Clamp	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug					4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-3SG-328	Gold	Black	Backshell	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug	0.28 in	7.37 mm	7.11 mm	0.29 in
Conxall/Switchcraft 3180-3SG-515	Gold	Black	Backshell, Cable Clamp	Free Hanging (In-Line)	Nylon, Polyamide (PA)	Plastic	Weathertight	Crimp	-40 °C	115 °C	Unshielded	Brass	600 V	Keyed	Bayonet Lock	Female Sockets, Plug										0.15 in, 0.17 in	3.81 mm, 4.32 mm
