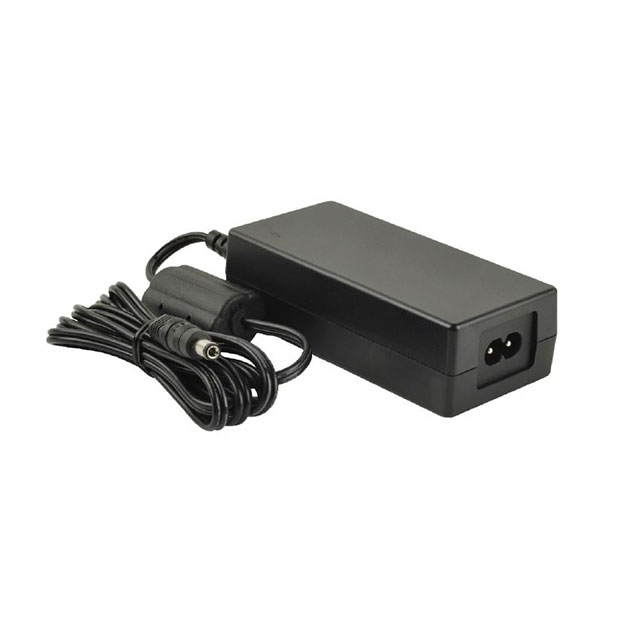

SDI30-15-UD-P6
ObsoleteCUI Inc.
AC/DC DESKTOP ADAPTER 15V 30W
Deep-Dive with AI
Search across all available documentation for this part.
SDI30-15-UD-P6
ObsoleteCUI Inc.
AC/DC DESKTOP ADAPTER 15V 30W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDI30-15-UD-P6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN, FCC, TUV, UL, IEC, SIQ, CB Scheme, CSA |
| Cord Length | 60.2 in |
| Cord Length | 1.53 m |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 30 W |
| Region Utilized | International |
| Size / Dimension [x] | 111 mm |
| Size / Dimension [x] | 4.37 in |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [y] | 2.05 in |
| Size / Dimension [z] | 32.3 mm |
| Size / Dimension [z] | 1.27 in |
| Standard Number | 61000-3-3, 55032 Class B, 55024, 61000-3-2, 60950-1, C22.2 No. 60950-1, 61204-3 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SDI30-15-UD-P6
15V 30 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
