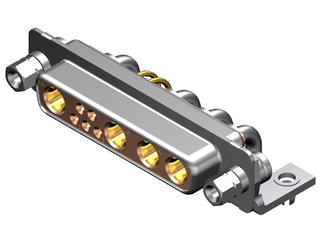

1731070194 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 14.50mm Riveted Metal Bracket and M3 Clinch Nut, Female Screw Locks and Washers, 9 Circuits Loaded (4 High Power, 5 Signal), Heat Resistant Natural Insulator

1731070194

Obsolete
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, 14.50MM RIVETED METAL BRACKET AND M3 CLINCH NUT, FEMALE SCREW LOCKS AND WASHERS, 9 CIRCUITS LOADED (4 HIGH POWER, 5 SIGNAL), HEAT RESISTANT NATURAL INSULATOR

Find alt
1731070194 - FCT Mixed Layout D-Sub Connector, Female, Right-Angle, PCB Through Hole, Gold Plating, Tin-plated Shell, 14.50mm Riveted Metal Bracket and M3 Clinch Nut, Female Screw Locks and Washers, 9 Circuits Loaded (4 High Power, 5 Signal), Heat Resistant Natural Insulator

1731070194

Obsolete
Molex

FCT MIXED LAYOUT D-SUB CONNECTOR, FEMALE, RIGHT-ANGLE, PCB THROUGH HOLE, GOLD PLATING, TIN-PLATED SHELL, 14.50MM RIVETED METAL BRACKET AND M3 CLINCH NUT, FEMALE SCREW LOCKS AND WASHERS, 9 CIRCUITS LOADED (4 HIGH POWER, 5 SIGNAL), HEAT RESISTANT NATURAL INSULATOR

Find alt

Description

General part information

173107 Series

D-Sub Mixed Contact Connectors FCT ML DSUB RA PC PLG 24W7 W/CLINCH

Technical Specifications

Parameters and characteristics for this part

Specification1731070194
Backset Spacing0.37 in
ColorNatural
Connector LayoutDB, B
Connector StyleCombo, D-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact FormMachined
Contact MaterialCopper Alloy
Contact TypeCoax or Power, Signal
Current Rating5 A
Dielectric MaterialPolycyclohexylenedimethylene Terephthalate (PCT)
FinishTin Plated
Flange FeatureShell (Unthreaded), Housing
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions (Special)4
Number of Positions (Standard)5
Number of Positions (Total)9
Number of Rows2
Operating Temperature (Max)150 °C
Operating Temperature (Min)-55 °C
Part Code9W4
Position TypesCoax, Power
Primary MaterialMetal
Shell MaterialSteel
Shell Size3
TerminationSolder
