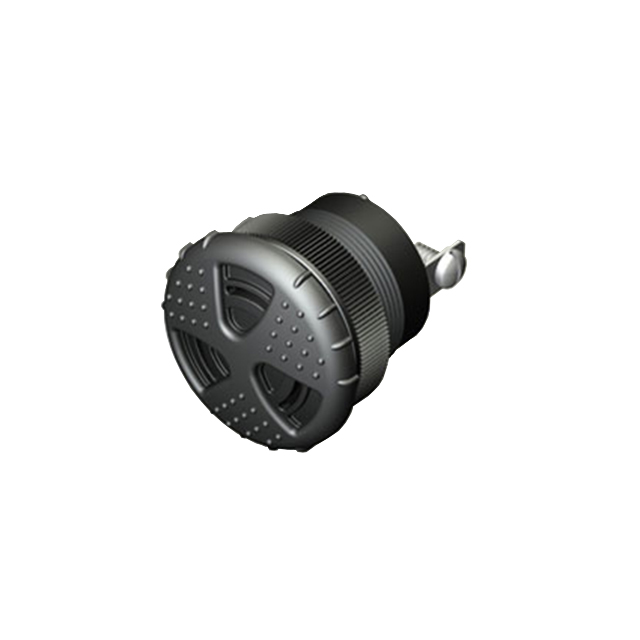

BUZZER PIEZO 35.8MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 35.8MM PNL MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXT-V86-515-S	TXT-V86 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	50 mA	50 mA
Current - Supply [Min]	10 mA	10 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max)	31.75 mm	31.75 mm
Height - Seated (Max) [Max]	1.25 in	1.25 in
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Staccato Tone	Staccato Tone
Port Location	Top	Top
Size / Dimension [diameter]	1.409 in	1.409 - 1.41 in
Size / Dimension [diameter]	35.8 mm	35.8 - 35.81 mm
Sound Pressure Level (SPL)	103 dB	103 dB
Technology	Piezo	Piezo
Termination	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads
Voltage Range [Max]	15 V	15 V
Voltage Range [Min]	5 VDC	5 VDC

BUZZER PIEZO 35.81MM PNL MNT

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Port Location	Technology	Frequency	Voltage Range [Min]	Voltage Range [Max]	Termination	Sound Pressure Level (SPL)	Ingress Protection	Operating Mode	Driver Circuitry	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Supply [Max]	Current - Supply [Min]	Input Type	Approval Agency
Floyd Bell Inc TXT-V86-515-Q	1.41 in	35.81 mm	Top	Piezo	2.9 kHz	5 VDC	15 V	Quick Connect Tab - 0.250" (6.35mm)	103 dB	IP68 - Dust Tight, Waterproof	Staccato Tone	Indicator, Internally Driven	31.75 mm	1.25 in	50 mA	10 mA	DC	UL, UR
Floyd Bell Inc TXT-V86-515-S	1.409 in	35.8 mm	Top	Piezo	2.9 kHz	5 VDC	15 V	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	103 dB	IP68 - Dust Tight, Waterproof	Staccato Tone	Indicator, Internally Driven	31.75 mm	1.25 in	50 mA	10 mA	DC	UL, UR
Floyd Bell Inc TXT-V86-515-W	1.41 in	35.81 mm	Top	Piezo	2.9 kHz	5 VDC	15 V	Wire Leads	103 dB	IP68 - Dust Tight, Waterproof	Staccato Tone	Indicator, Internally Driven	31.75 mm	1.25 in	50 mA	10 mA	DC	UL, UR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.65

General part information

Buzzers Indicator, Internally Driven Piezo 10 ~ 50mA 2.9kHz 103dB @ 15V, 61cm Panel Mount Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)
