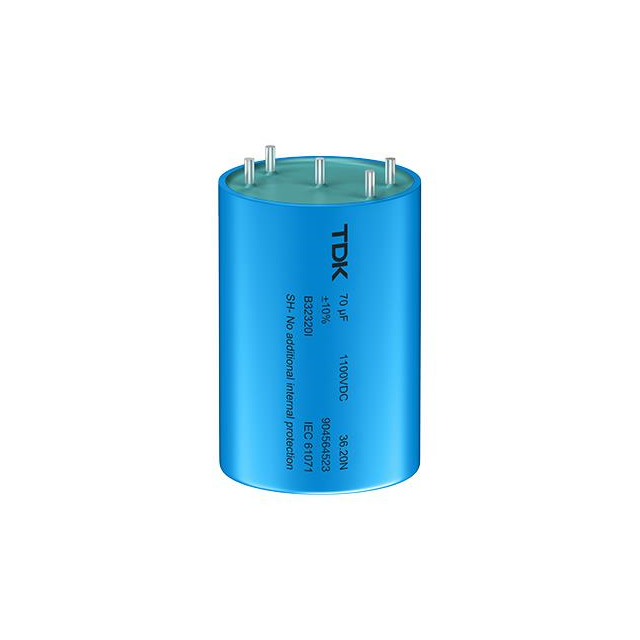

Specification	B32320I0706K000

Applications	General Purpose
Capacitance	70 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	4.7 mOhm
Features	Long Life
Height - Seated (Max)	3.74 in
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	5 Lead
Package Name	Radial, Can
Size / Dimension Diameter	1.969 in
Termination	Solder Lug
Tolerance	10 %
Voltage Rating - DC	1.1 kVDC
