Description
General part information

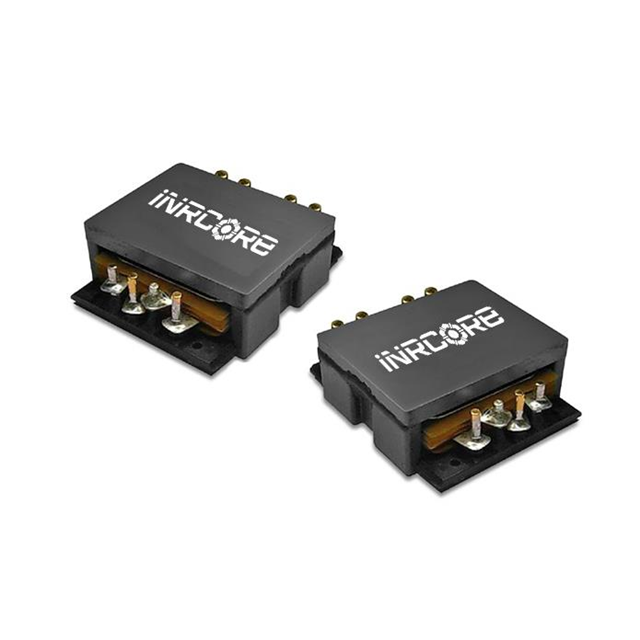

R8403NLT
PWR XFMR PLANAR 300W SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | R8403NLT |
|---|---|
| Center Tap | No |
| Height - Seated (Max) | 11.9 mm, 0.468 in |
| Mounting Type | Surface Mount |
| Power - Max | 300 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Multiple Taps, Single |
| Size / Dimension Length | 29.47 mm, 1.16 in |
| Size / Dimension Width | 26.67 mm, 1.05 in |
| Termination Style | Solder, Quick Connect |
| Type | Planar |
| Voltage - Isolation | 1750 V |
