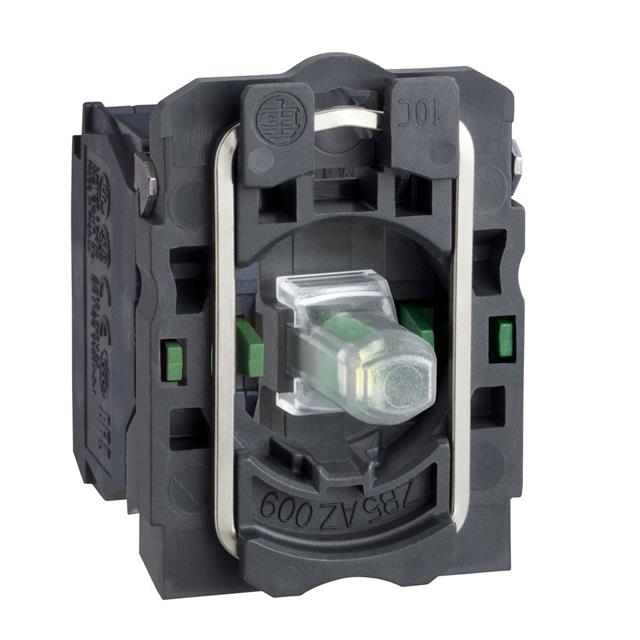

ZB5AW0M13
ActiveSCHNEIDER ELECTRIC
CONTACT BLOCK, DPST-NO, SCREW CLAMP, 2 POLE, 6 A, 120 V
ZB5AW0M13
ActiveSCHNEIDER ELECTRIC
CONTACT BLOCK, DPST-NO, SCREW CLAMP, 2 POLE, 6 A, 120 V
Description
General part information
ZB5AW0M13
Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | ZB5AW0M13 |
|---|---|
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | DPST-NO |
| Color | White |
| Color - Actuator/Cap | White |
| Current Rating | 550 mA, 6 A |
| Electrical Life (Cycles) | 1000000 Cycles |
| Illumination Type | LED |
| Illumination Voltage (Nominal) (Maximum) | 240 VAC |
| Illumination Voltage (Nominal) (Minimum) | 230 VAC |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Switch Function | Off-On |
| Termination Style | Screw Terminal |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 125 V |
