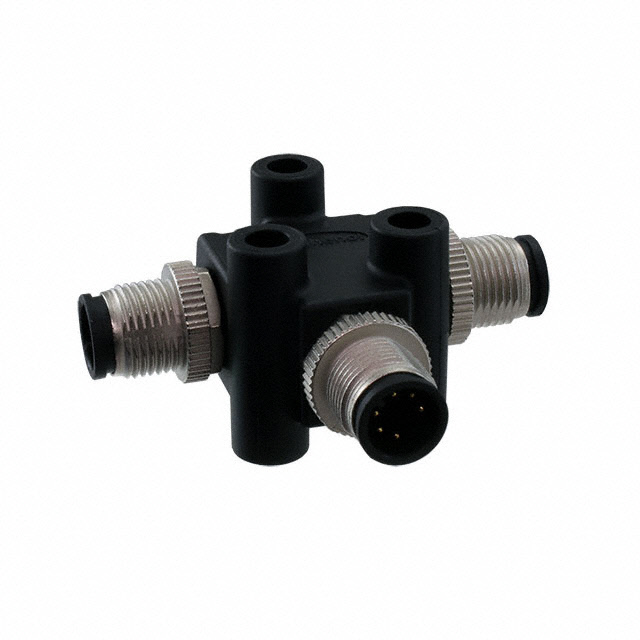

TA-A06M-A06M-A06M-01

Active

CIRCULAR METRIC CONNECTORS CIRCULAR METRIC CONNECTOR, T ADAPTOR, METAL, A CODING, 2A, 06 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) MALE MALE, SCREW THREAD, IP68 MATED

Find alt

Alpha

TA-A06M-A06M-A06M-01

Active

McGill Microwave Systems

CIRCULAR METRIC CONNECTORS CIRCULAR METRIC CONNECTOR, T ADAPTOR, METAL, A CODING, 2A, 06 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) MALE MALE, SCREW THREAD, IP68 MATED

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

M12 Series

Circular Connector Distributor T-Shaped 6/6 (2) Male Pins/Male Pins (2) Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

Specification	TA-A06M-A06M-A06M-01

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Male Pins
Convert To (Adapter End) Count	2 count
Fastening Type	Threaded
Housing Material	Thermoplastic
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	6
Number of Positions (Convert To)	6
Number of Positions (Convert To) Secondary	2
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To)	M12
Shielding	Unshielded
