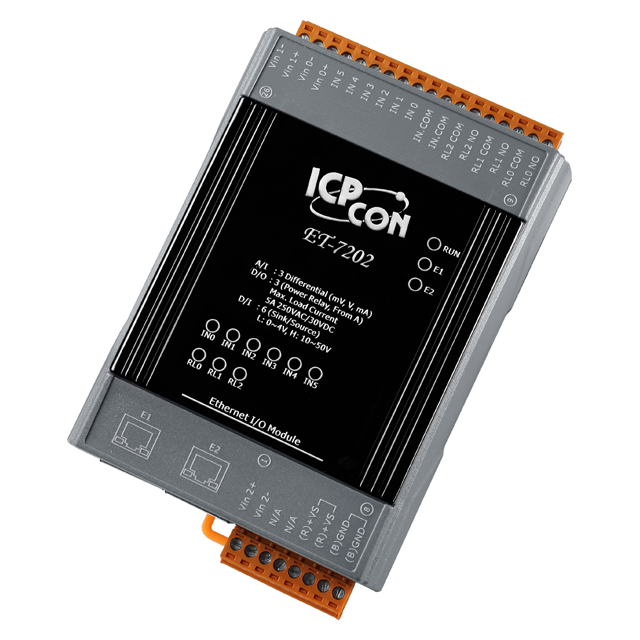

PET-7202
ActiveICP DAS USA INC
I/O MOD 6DIG 3 ANLG 3 REL 12-48V
PET-7202
ActiveICP DAS USA INC
I/O MOD 6DIG 3 ANLG 3 REL 12-48V
Description
General part information
PET-7202
Input, Output (I/O) Module DIN Rail 12 ~ 48VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | PET-7202 |
|---|---|
| Approval Agency | CE |
| Input Types | Digital, Analog |
| Mounting Type | DIN Rail |
| Number of Analog Inputs | 3 |
| Number of Digital Inputs | 6 |
| Number of Inputs | 9 |
| Number of Outputs | 3 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Relay |
| Termination Style | Screw Terminal |
| Type | Output (I/O) Module, Input |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
