Description
General part information
TSA89-E1E1-S48

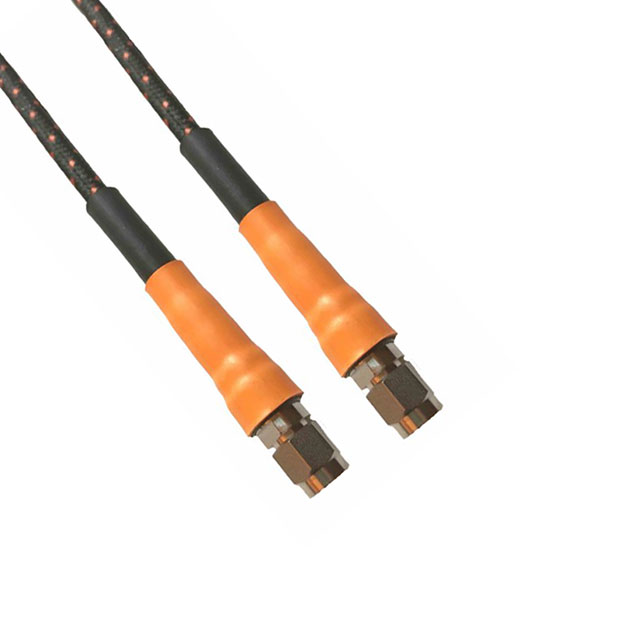

Cable Assembly Coaxial 3.5mm to 3.5mm 4.95mm OD Coaxial Cable 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | TSA89-E1E1-S48 |
|---|---|
| 1st Connector | Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Size | 3.5 mm |
| 1st Contact Gender | Male |
| 2nd Connector | Plug |
| 2nd Connector Diameter | 3.5 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 4.95 mm |
| Cable Type | Coaxial Cable, 4.95mm OD Coaxial Cable, mm OD Coaxial Cable |
| Cable Type Size | 4.95 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 32 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 3.5mm to 3.5mm |
