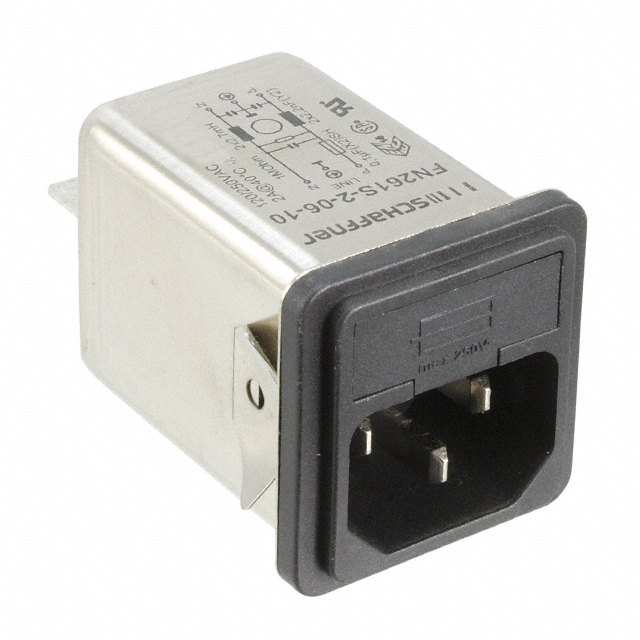

Specification	FN261S-2-06-10

Accomodates a Fuse	Yes (Fuse Not Included)
Approval Agency	ENEC, UL, CQC, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades - Module, Receptacle
Current Rating - Filter	2 A
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Snap-In
Number of Positions	3
Panel Cutout Length	29.5 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	33 mm
Panel Thickness (Max)	0.059 in
Panel Thickness (Min)	0.024 in
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

Schaffner FN9260/FN261 Series

AC Power Entry Modules IEC Inlet Filter with Dual Fuse 250VAC, 2A, Faston, Snap-in Vertical 2.6 to 3.5mm

...

Part	Mounting Type	Connector Style	Filter Subtype	Filter Application	Filter Type	Material Flammability Rating	Termination	Ingress Protection	Connector Type	Current Rating - Filter	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Approval Agency	Fuse Holder, Drawer	Accomodates a Fuse	Number of Positions	Panel Thickness (Max)	Panel Thickness (Min)	Termination Probe Tip OD
TE Connectivity AMP Connectors FN9260B-6-07	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial Medical	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	6 A	29 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3
TE Connectivity AMP Connectors FN261S-4-06-10	Panel Mount Snap-In	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-2	Quick Connect	IP40	Male Blades - Module Receptacle	4 A	29.5 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder	Yes (Fuse Not Included)	3	0.059 in	0.024 in	0.25 in
TE Connectivity AMP Connectors FN9260SB-6-07-10	Panel Mount Snap-In	IEC 320-C14	EMI RFI	Commercial Medical	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	6 A	29.5 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9260S-2-07-10	Panel Mount Snap-In	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	2 A	29.5 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9260-1-07	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	1 A	29 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3
TE Connectivity AMP Connectors FN9260A-4-07	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	4.6 A	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3
TE Connectivity AMP Connectors FN261-2-06	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-2	Quick Connect	IP40	Male Blades - Module Receptacle	10 A	29 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder	Yes (Fuse Not Included)	3			0.25 in
TE Connectivity AMP Connectors FN9260B-2-06	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial Medical	Filtered	UL94 V-2	Quick Connect	IP40	Male Blades - Module Receptacle	2 A	29 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3			0.25 in
TE Connectivity AMP Connectors FN9260A-6-07	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	6.9 A	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3
TE Connectivity AMP Connectors FN9260B-4-07	Flange Panel Mount	IEC 320-C14	EMI RFI	Commercial Medical	Filtered	UL94 V-0	Wire Leads	IP40	Male Blades - Module Receptacle	4 A	29 mm	Rectangular	33 mm	CQC CSA ENEC UL	Fuse Holder Twin Fused	Yes (Fuse Not Included)	3
