5-1546399-0
ActiveTE Connectivity AMP Connectors
CONN BARRIER STRP 26CIRC 0.375"
Description
General part information
1546399 Series

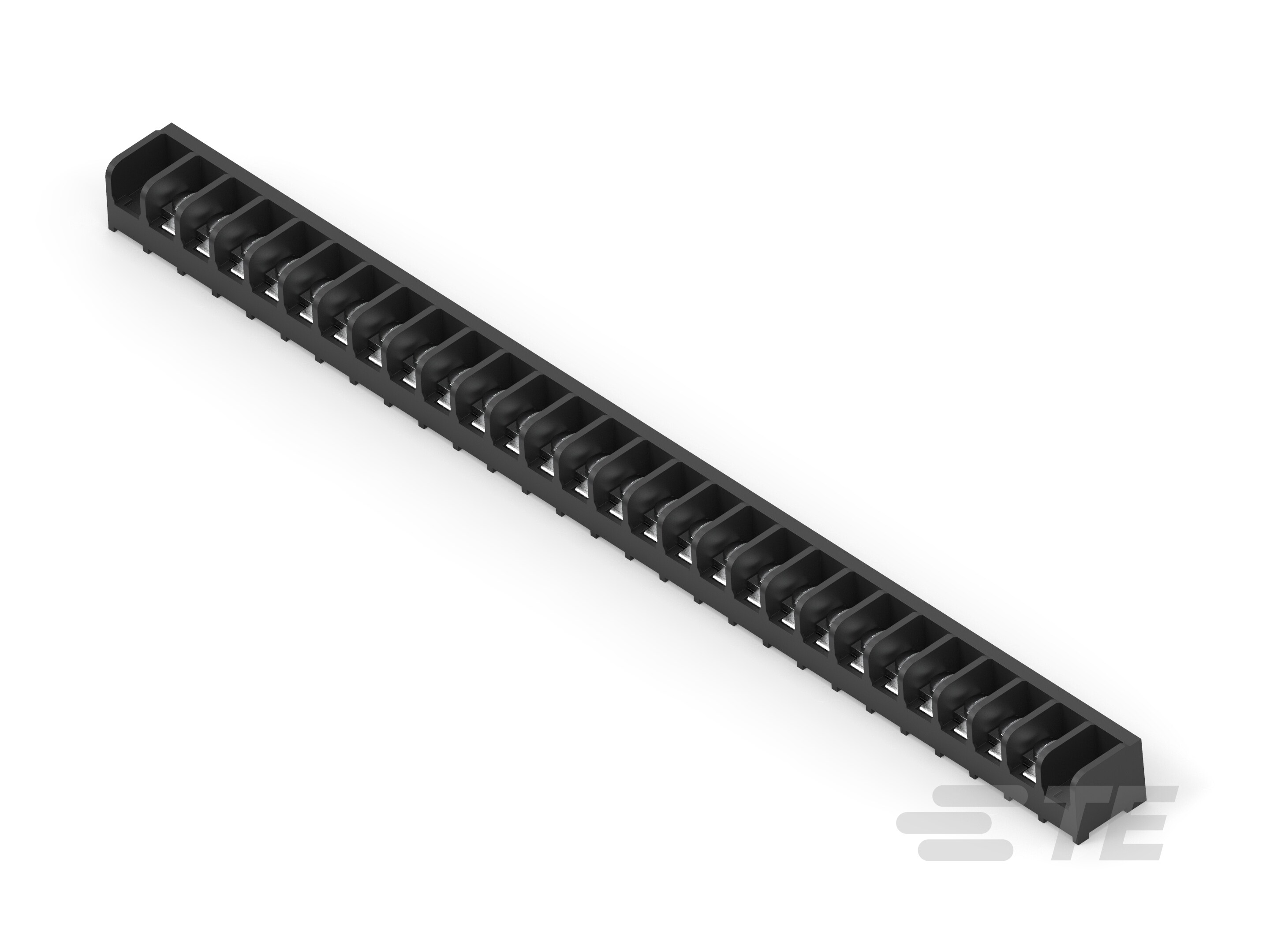

26 Position Barrier Strip, Tri-Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 9.53 mm [.375 in] Centerline, 1 Row, 300 V, 22 – 12 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1546399-0 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating | 25 A |
| Features | Flange |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole |
| Number of Circuits | 26 |
| Number of Rows | 1 |
| Number of Wire Entries | 26 |
| Operating Temperature | 105 °C |
| Pitch | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Clear Chromate, Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 300 VAC/DC |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
