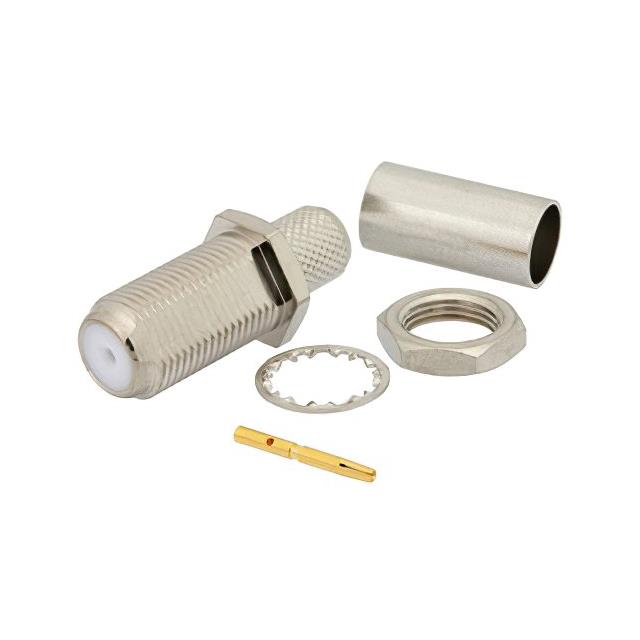

PE44324
ActivePasternack
75 OHM F FEMALE BULKHEAD MOUNT C
PE44324
ActivePasternack
75 OHM F FEMALE BULKHEAD MOUNT C
Description
General part information
PE44324
F Type Connector Receptacle, Female Socket 75 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PE44324 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-6 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | F Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
