Description
General part information

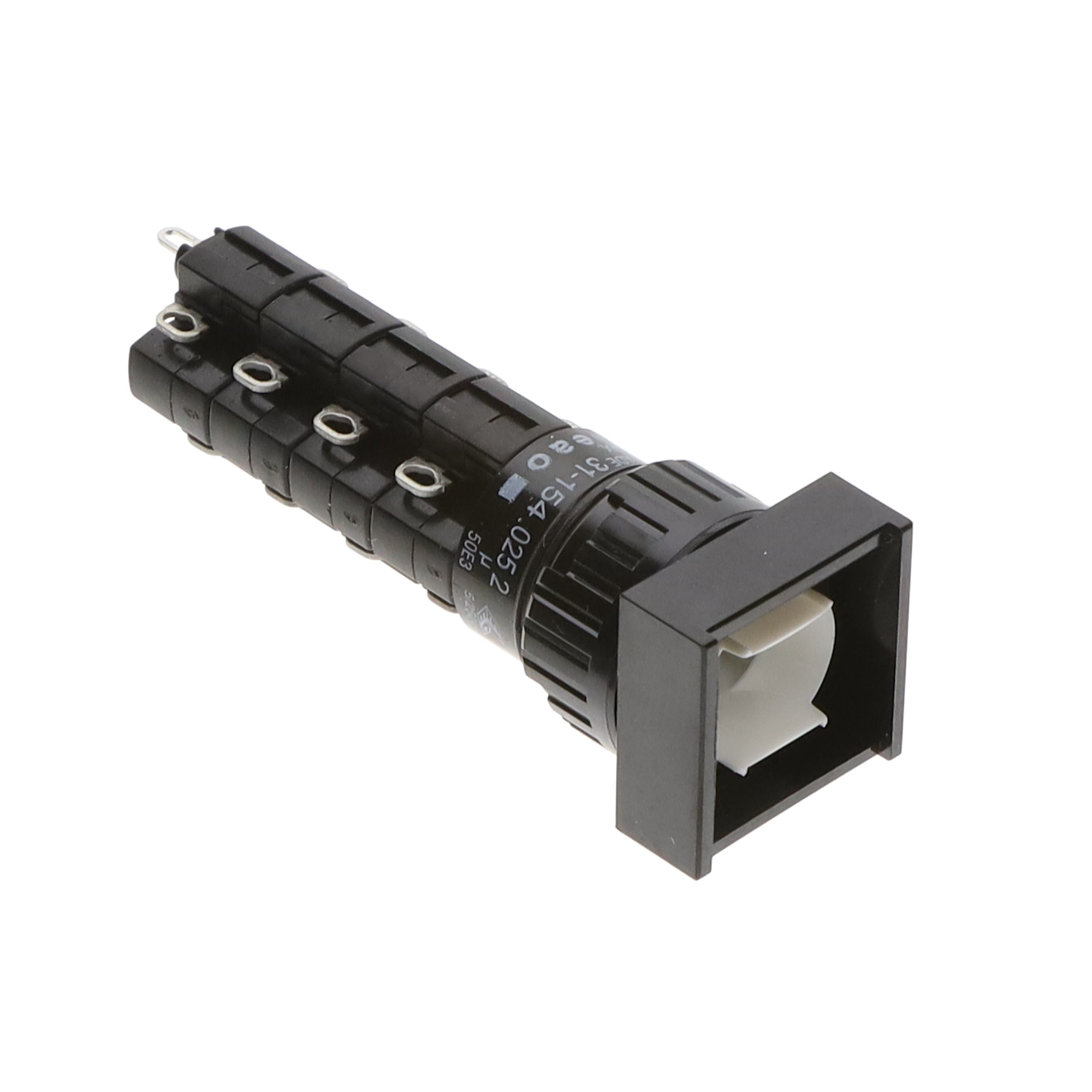

31-154.0252
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 31-154.0252 |
|---|---|
| Actuator Type | Button (Not Included), Square |
| Circuit | DPST-NO/NC |
| Current Rating | 5 A |
| Ingress Protection | IP40 |
| Mounting Type | Front, Panel Mount |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
