1-967167-6
ActiveTE Connectivity AMP Connectors
AUTO CONN 3POS MQS TAB SEALED CO
1-967167-6
ActiveTE Connectivity AMP Connectors
AUTO CONN 3POS MQS TAB SEALED CO
Description
General part information
1-967167-6

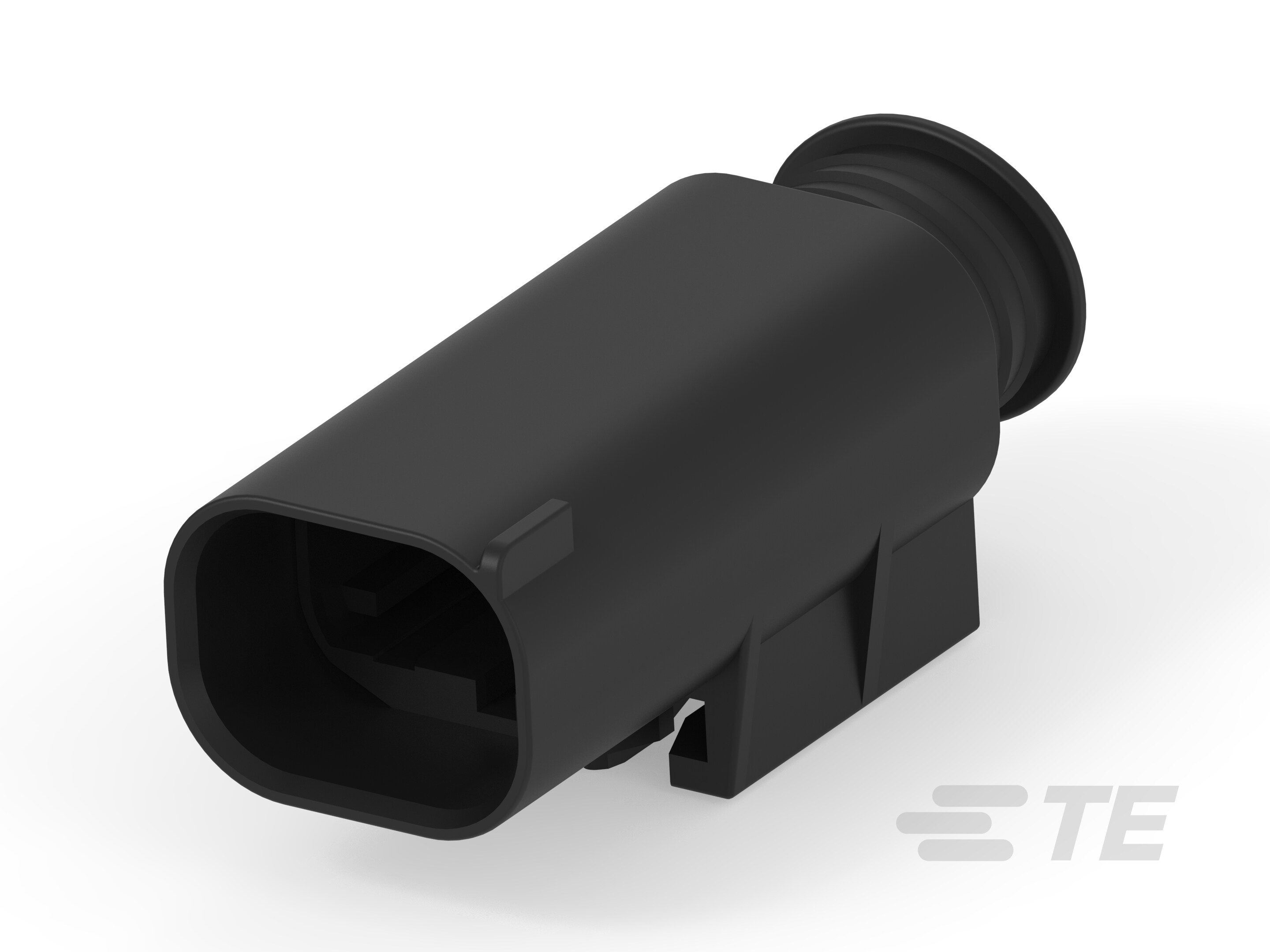

3 Position Housing, Housing for Male Terminals, Wire-to-Wire, 3.1 mm [.122 in] Centerline, Sealable, Black, Wire & Cable, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967167-6 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.122 in |
| Row Spacing | 0.1 in |
