XUK8TAE1MM12
ActiveSCHNEIDER ELECTRIC

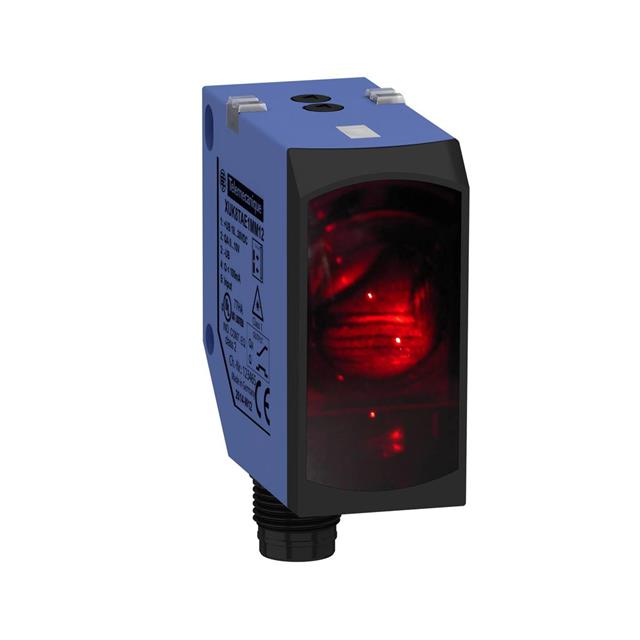

PHOTOELECTRIC SENSOR, OSISENSE XU SERIES, DIFFUSE, 5 M, 0 TO 10 V, 18 TO 30 V, M12 CONNECTOR
XUK8TAE1MM12
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC SENSOR, OSISENSE XU SERIES, DIFFUSE, 5 M, 0 TO 10 V, 18 TO 30 V, M12 CONNECTOR
Description
General part information
XUK8TAE1MM12
Diffuse Optical Sensor 196.850" (5m) Analog Voltage, NPN/PNP-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUK8TAE1MM12 |
|---|---|
| Connection Method | Connector, M12 |
| Ingress Protection | IP69K, IP67 |
| Light Source | Yellow LED, Green LED |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NPN, NO, PNP-NC, Analog Voltage |
| Response Time | 1.2 ms |
| Sensing Distance | 196.85 " |
| Sensing Method | Diffuse |
| Voltage - Supply | 30 VDC |
