FM18VNA003-36
ObsoleteFairview Microwave
COAX CBL N-TYPE TO N-TYPE 36"
FM18VNA003-36
ObsoleteFairview Microwave
COAX CBL N-TYPE TO N-TYPE 36"
Description
General part information
FM18VNA003-36

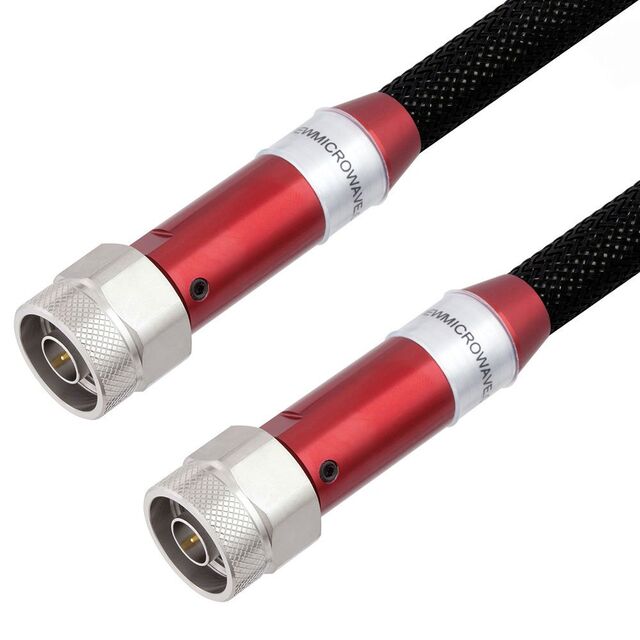

Cable Assembly Coaxial N-Type to N-Type VNA 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FM18VNA003-36 |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | VNA |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 36 in |
| Operating Temperature | 125 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
