6-1971793-2
ActiveTE Connectivity AMP Connectors

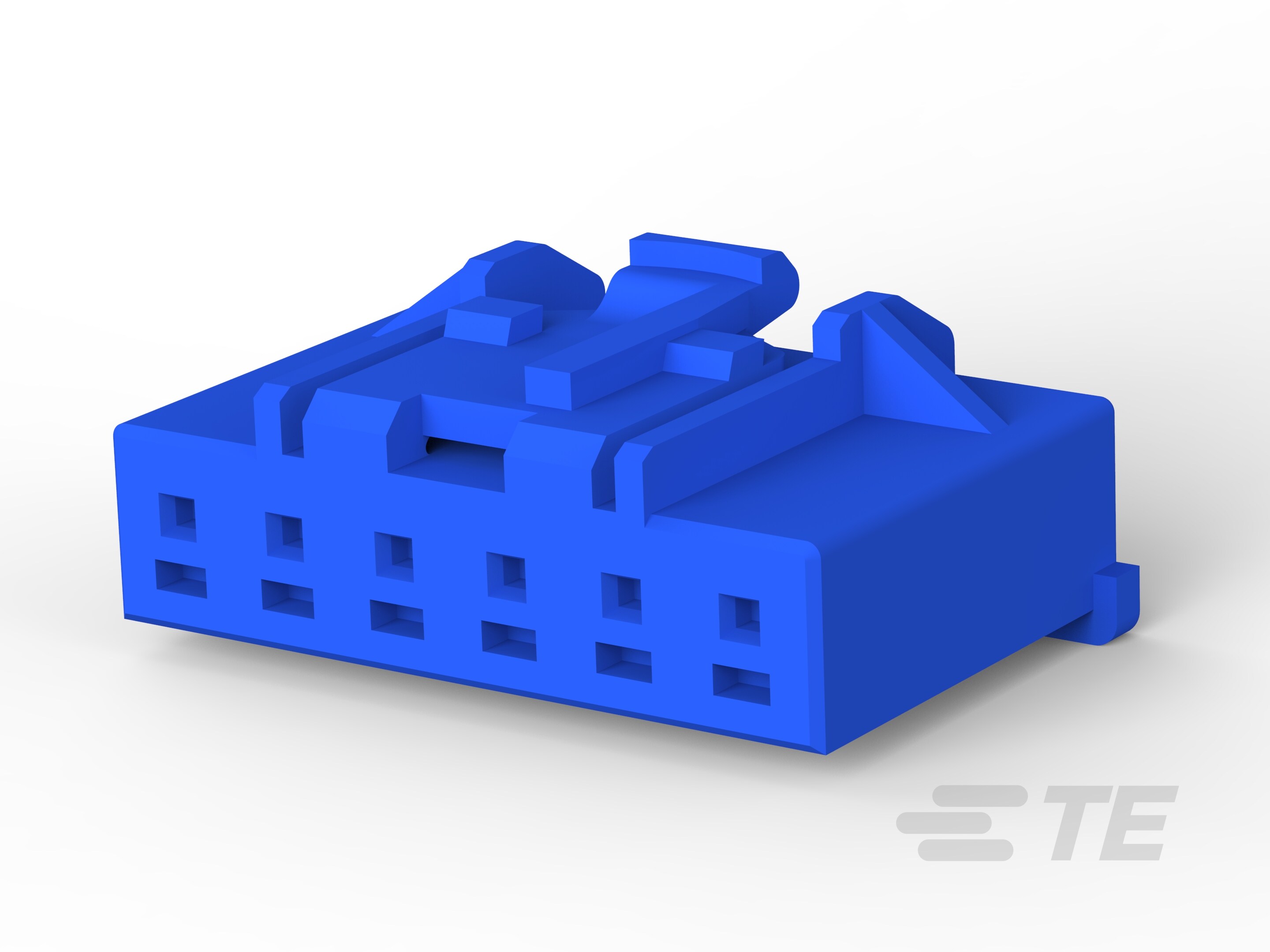

NEW GI CONN2.5 PLUG HSG 6P BLU
6-1971793-2
ActiveTE Connectivity AMP Connectors
NEW GI CONN2.5 PLUG HSG 6P BLU
Description
General part information
GRACE INERTIA 2.5 Series
6 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 50 VAC, Wire & Cable, Power & Signal, GRACE INERTIA 2.5
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1971793-2 |
|---|---|
| Color | Blue |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.098 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
ENG_CD_1971793_G2.pdf
Datasheet
New Generation Grace Inertia Connector 2.5 Glow Wire
5-1773465-3-GI2.5Flyer
New 2.5 Series Connectors Qualification Test Report
7-1773465-8-GI2.5-ChineseFlyer
NEXT GENERATION GRACE INERTIA 2.5 CONNECTOR
New Generation Grace Inertia Connector 2.5 Product Specification
6-1971793-2 | Datasheet
