8-1971772-3
ActiveTE Connectivity AMP Connectors

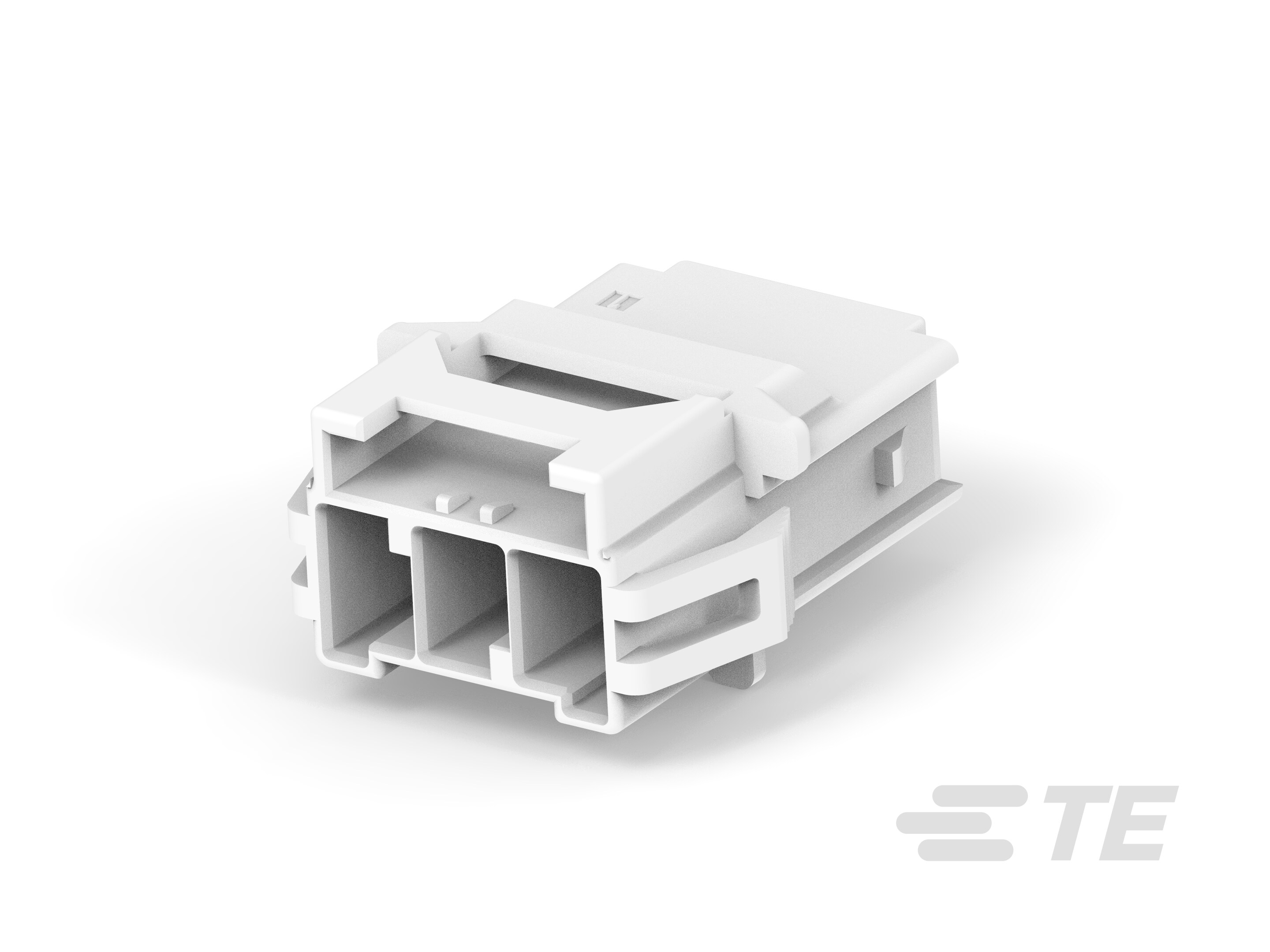

PTL 1X3 CAP PANEL MT HITEMP KEY D NAT
8-1971772-3
ActiveTE Connectivity AMP Connectors
PTL 1X3 CAP PANEL MT HITEMP KEY D NAT
Description
General part information
8-1971772-3
3 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 1 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 8-1971772-3 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.236 in |
