Description
General part information
U.FL-2LP-062N1D-A-(400)

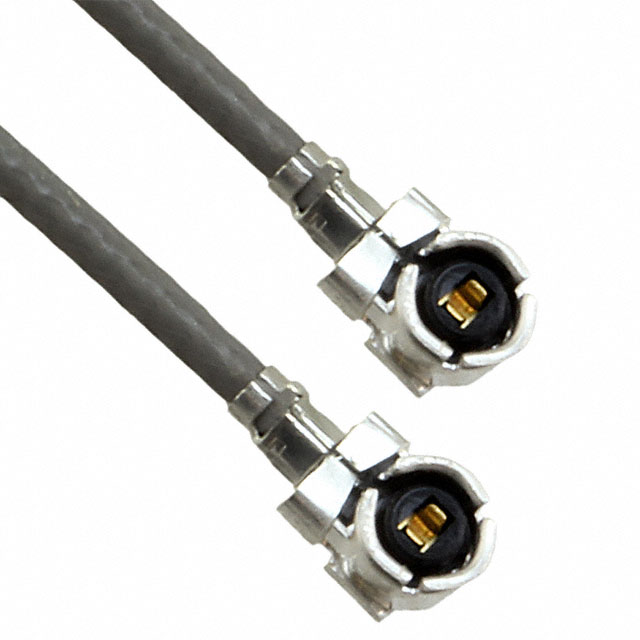

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.00mm OD Coaxial Cable 15.75" (400.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | U.FL-2LP-062N1D-A-(400) |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | U.FL (UMCC) Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, U.FL (UMCC) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1 mm |
| Cable Type | OD Coaxial Cable, Coaxial Cable, 1.00mm OD Coaxial Cable |
| Cable Type Size | 1 |
| Color | Gray |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 15.75 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) |
