7314
ActiveKeystone Electronics
CONN TERM LUG LOCKWASHR #4 ANGLE
7314
ActiveKeystone Electronics
CONN TERM LUG LOCKWASHR #4 ANGLE
Description
General part information
7314

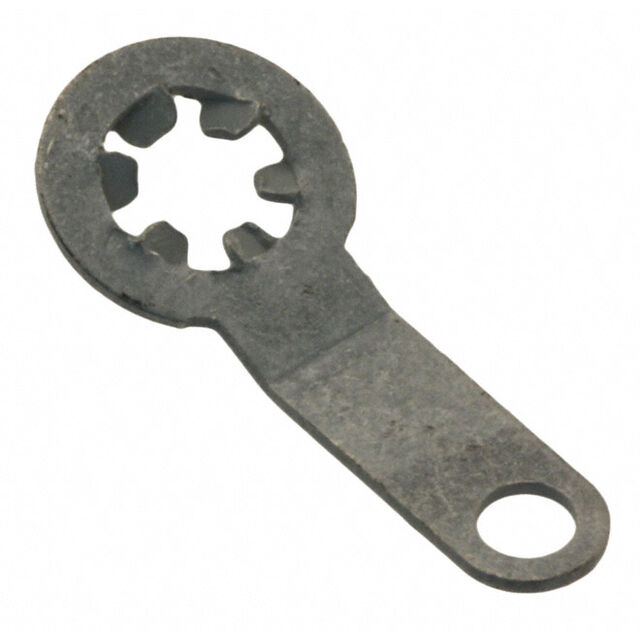

4 Stud Lockwasher, Internal Tooth Lug Terminal Angled Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 7314 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Hole Diameter | 0.093 in |
| Length - Overall | 0.718 in |
| Mounting Type | Angled |
| Stud/Tab Size | 4 Stud |
| Style | Lockwasher, Internal Tooth |
| Terminal Type | Straight, Long Stem |
