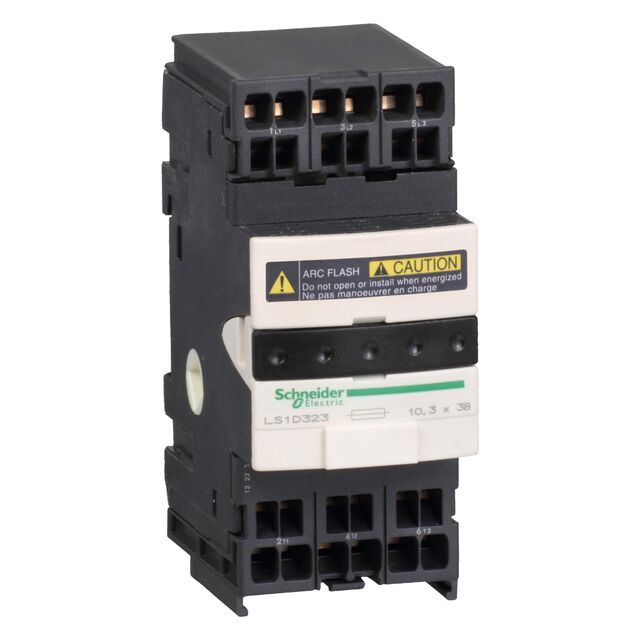

LS1D323
ActiveSCHNEIDER ELECTRIC
FUSEHOLDER 32A SPRING TERMINAL TESYS ROHS COMPLIANT: YES
LS1D323
ActiveSCHNEIDER ELECTRIC
FUSEHOLDER 32A SPRING TERMINAL TESYS ROHS COMPLIANT: YES
Description
General part information
LS1D323
Fuse Holder 25 A 600V 3 Circuit Cartridge DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | LS1D323 |
|---|---|
| Current Rating | 25 A |
| For Use With/Related Products | 10mm x 38mm |
| Fuse Diameter | 0.394 in |
| Fuse Length | 1.496 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Holder |
| Mounting Type | DIN Rail |
| Number of Circuits | 3 |
| Orientation | Vertical |
| Termination Style | Screw Terminal |
| Voltage | 600 V |
