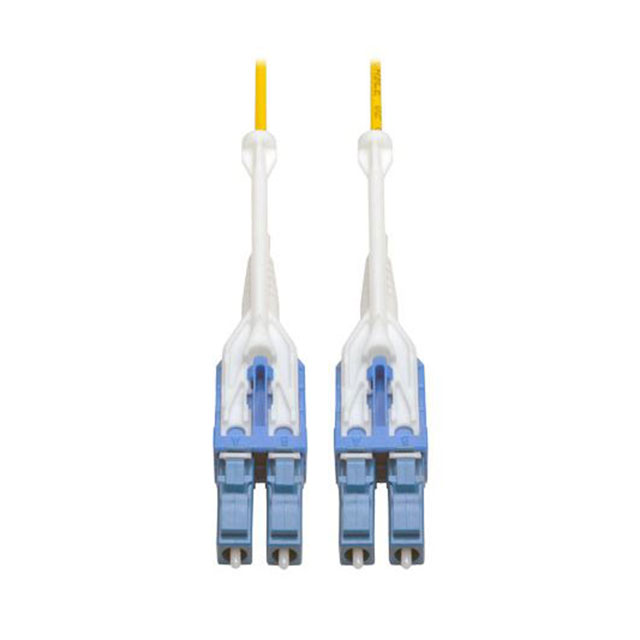

N370-01M-T
ActiveEaton Tripp Lite
FIBER OPTIC CBL LC-LC DUPLEX 1M
N370-01M-T
ActiveEaton Tripp Lite
FIBER OPTIC CBL LC-LC DUPLEX 1M
Description
General part information
N370-01M-T
Cable Fiber Optic LC Duplex To LC Duplex 8.3/125 3.3' (1.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N370-01M-T |
|---|---|
| 1st Connector | LC Duplex |
| 2nd Connector | LC Duplex |
| Cable Type | Twin Zip |
| Color - Cable | Yellow |
| Color - Connectors | Blue |
| Features | Zipcord |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 8.3 µm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Length - Overall | 3.3 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | FDDI, OFNR |
| Type | Singlemode, Duplex |
