Description
General part information

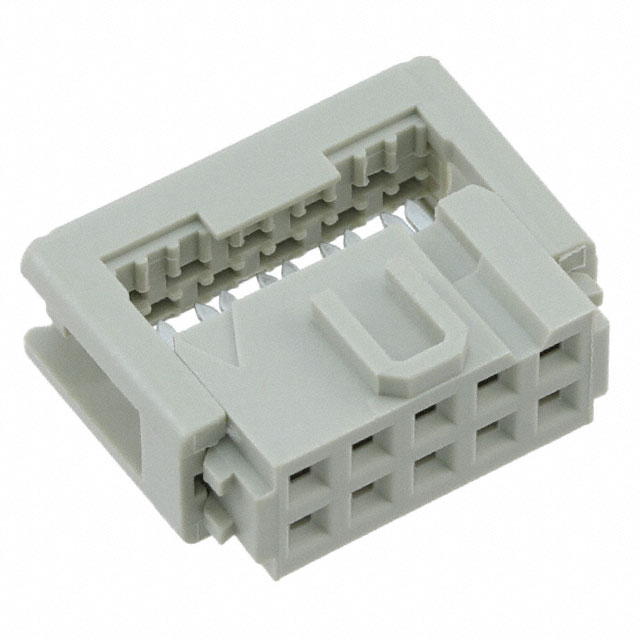

09185106804
10 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 09185106804 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Features | Closed End, Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 26 AWG |
| Wire Type | Ribbon Cable |
