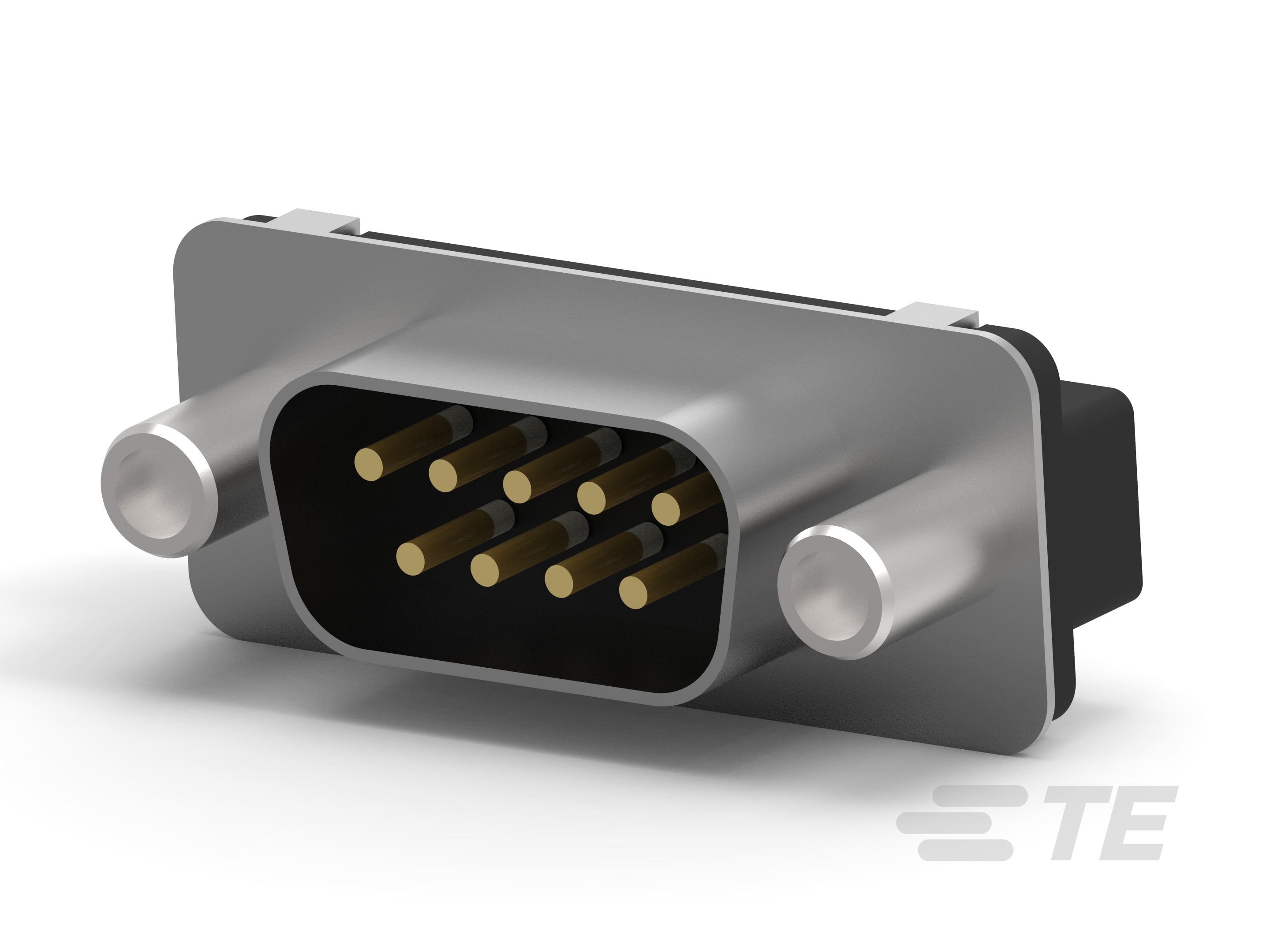

Specification	1-747871-4

Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Type	Signal
Current Rating	6 A
Features	Grounding Indents
Finish	Tin Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Shell Material	Steel
Shell Size	1
Termination	Solder

AMPLIMITE HD-20 Series

...

Part	Flange Feature	Connector Type	Number of Positions	Material Flammability Rating	Features	Backset Spacing	Mounting Type	Finish	Shell Material	Contact Type	Contact Finish	Contact Finish Thickness	Number of Rows	Termination	Current Rating	Shell Size	Connector Layout	Connector Style	Contact Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Color
TE Connectivity AMP Connectors 5745783-2	Housing Shell (Unthreaded)	Female Sockets Receptacle	25	UL94 V-0	Ground Strap	0.318 in	Right Angle Through Hole	Tin Plated	Steel	Signal	Gold	30 µin	2	Solder	6 A	3	B DB	D-Sub	Phosphor Bronze	Thermoplastic	-55 °C	105 °C	125 V	Black
