Description
General part information

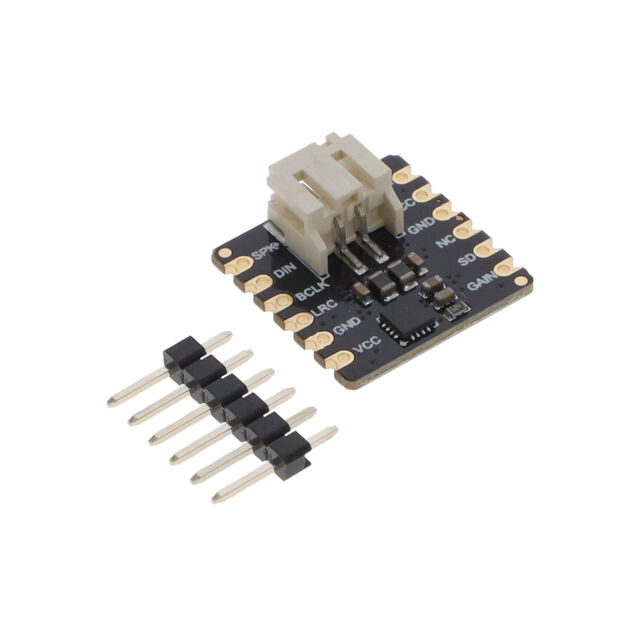

DFR0954
MAX98357 - Output Class D Audio Amplifier Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DFR0954 |
|---|---|
| Amplifier Type | Class D |
| Board Type | Fully Populated |
| Channels | 1 |
| Contents | Board |
| Load Impedance | 4 Ohm |
| Maximum Output Power (per Channel) | 8 W |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX98357 |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 3.3 V |
