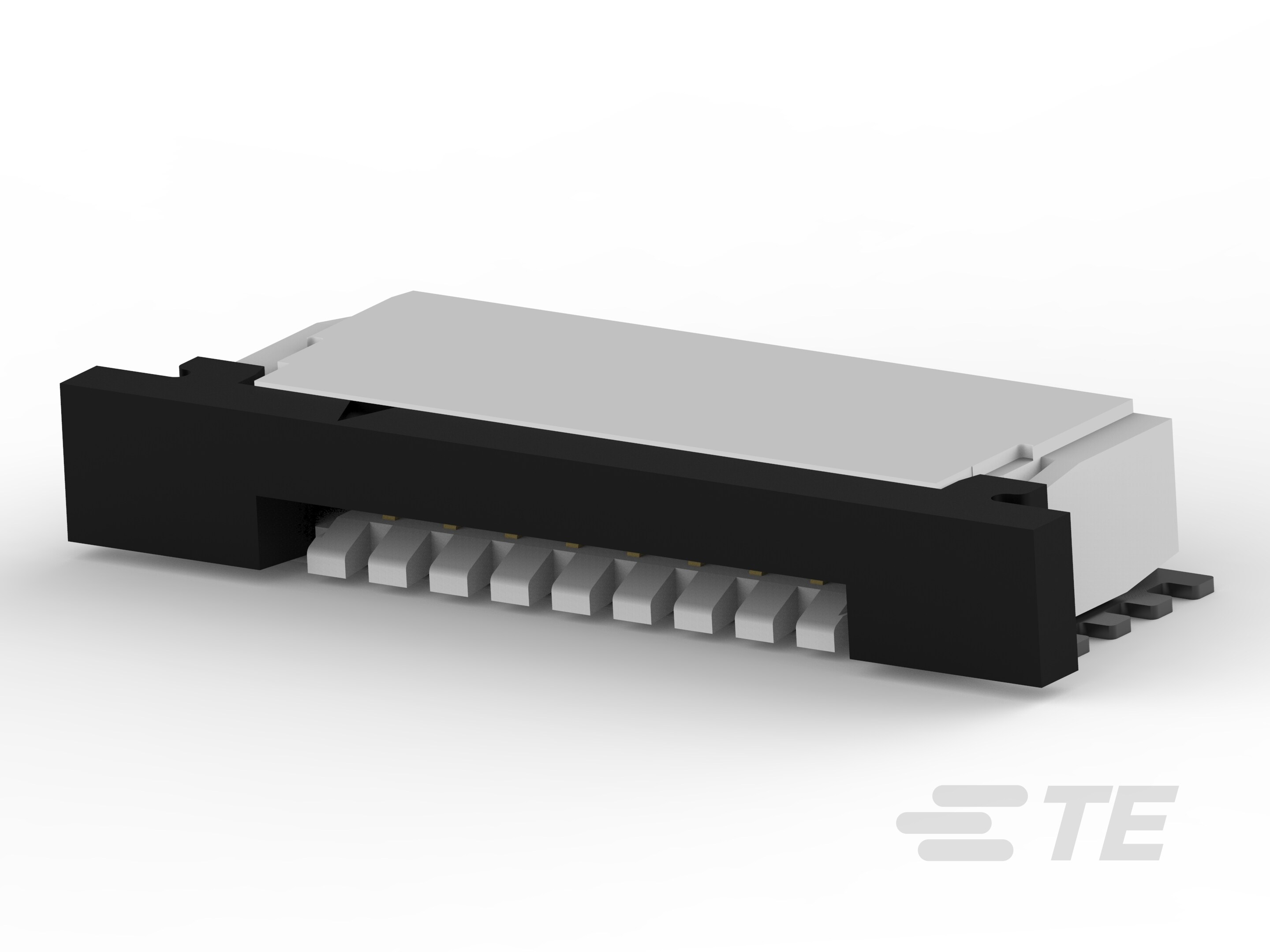

1MM FPC HORZ.BOTTOM CONT.ASSY 8P (Au)-1735265-8

1735265-8

Active
TE Connectivity AMP Connectors

1MM FPC HORZ.BOTTOM CONT.ASSY 8P (AU)

Find alt
1MM FPC HORZ.BOTTOM CONT.ASSY 8P (Au)-1735265-8

1735265-8

Active
TE Connectivity AMP Connectors

1MM FPC HORZ.BOTTOM CONT.ASSY 8P (AU)

Find alt

Description

General part information

1735265-8

1 mm [.039 in] Centerline, Right Angle, Surface Mount, Stuffer Actuator, Gold Flash, 8 Position, FPC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification1735265-8
Actuator MaterialPolyphthalamide (PPA), Glass Filled
Cable End TypeStraight
Connector/Contact TypeContacts, Bottom
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesSolder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness0.3 mm
Flat Flex TypeFPC
Height Above Board0.101 in
Housing MaterialGlass Filled, LCP, Liquid Crystal Polymer
Locking FeatureSlide Lock
Material Flammability RatingUL94 V-0
Mounting TypeRight Angle, Surface Mount
Number of Positions8
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Pitch0.039 in
TerminationSolder
