Description
General part information

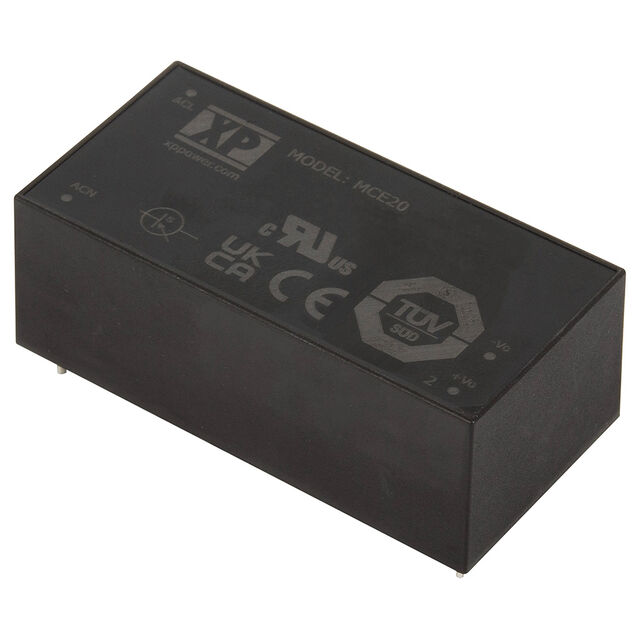

MCE20US12
Enclosed AC DC Converters 1 Output 12V 1.67A 80 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MCE20US12 |
|---|---|
| Applications | Medical |
| Approval Agency | UKCA, TUV, CE, UL, CB |
| Current - Output (Max) | 1.67 A |
| Efficiency | 85 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension Height | 0.92 in |
| Size / Dimension Length | 2.6 in |
| Size / Dimension Width | 1.3 in |
| Standard Number | 60601-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 80 V |
| Voltage - Output 1 | 12 V |
