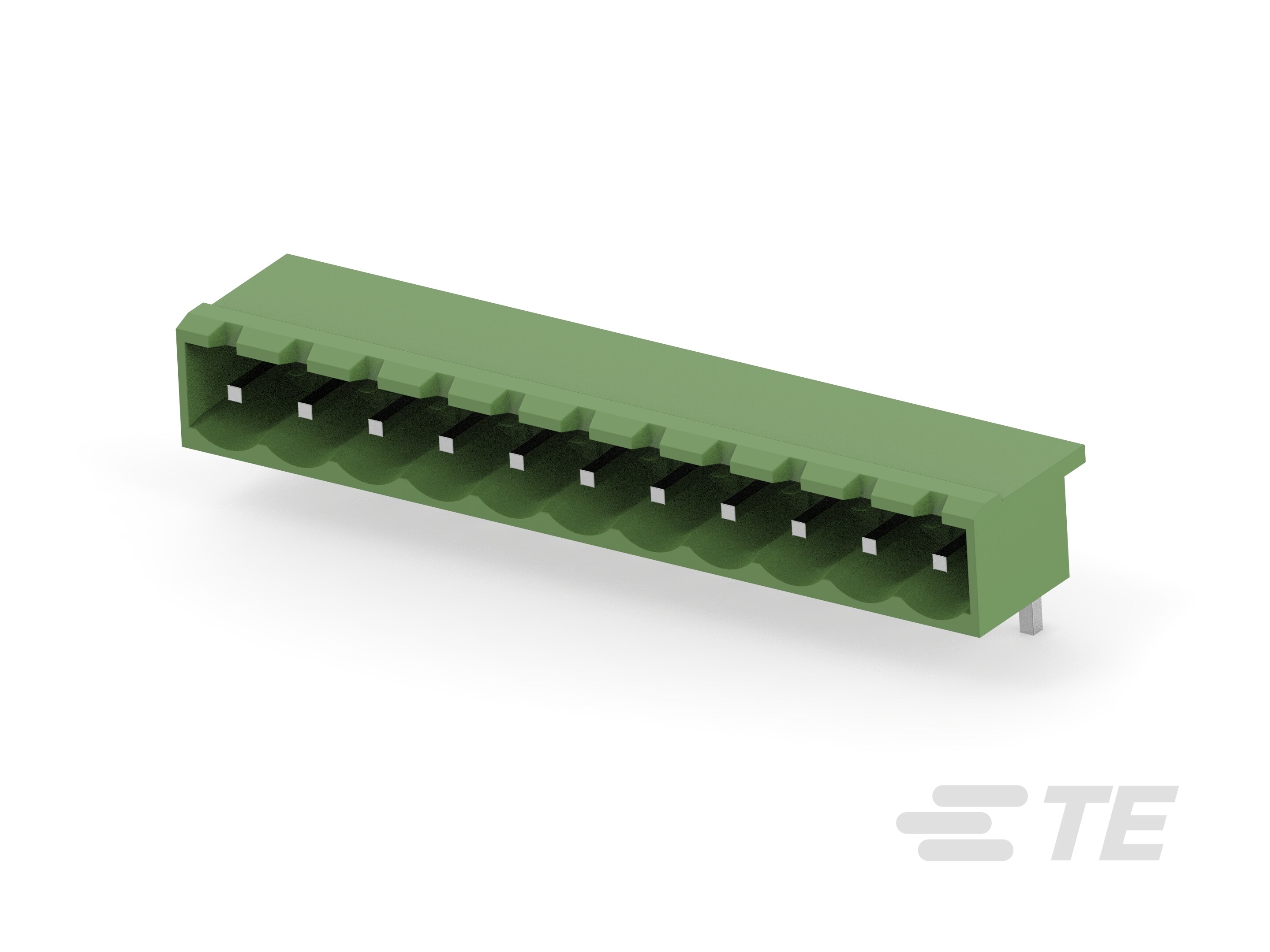

11P TB HDR 90 DEG,PITCH 5.08 &TL 4.5mm-1-2385008-1

1-2385008-1

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 11P TB HDR 90 DEG,PITCH 5.5008 &TL 4.5MM

Find alt
11P TB HDR 90 DEG,PITCH 5.08 &TL 4.5mm-1-2385008-1

1-2385008-1

Active
TE Connectivity AMP Connectors

PLUGGABLE TERMINAL BLOCKS 11P TB HDR 90 DEG,PITCH 5.5008 &TL 4.5MM

Find alt

Description

General part information

1-2385008-1

11 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 300 VAC, Printed Circuit Board, Right Angle

Technical Specifications

Parameters and characteristics for this part

Specification1-2385008-1
ColorGreen
Contact Mating FinishTin
Current - UL16 A
Header OrientationRight Angle
Header Orientation Angle90 °
Mounting TypeThrough Hole
Number of Levels1
Number of Positions11
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch5.08 mm
Positions Per Level11
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL300 V
