BMYD890K
ActiveMcGill Microwave Systems
RF ANT 925MHZ YAGI N TYPE F POLE
BMYD890K
ActiveMcGill Microwave Systems
RF ANT 925MHZ YAGI N TYPE F POLE
Description
General part information
BMYD890K

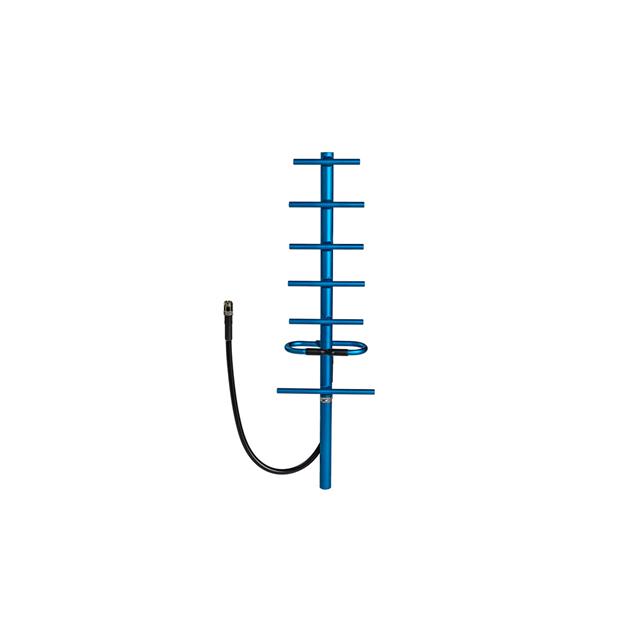

RF ANTENNA ISM, LoRa, LPWAN Yagi, 7-Element N Type Female Pole Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BMYD890K |
|---|---|
| Antenna Element Count | 7 elements |
| Antenna Type | Yagi |
| Applications | ISM, LPWAN, LoRa |
| Features | Cable, 609.6mm |
| Frequency (Center/Band) | 925 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 890 MHz |
| Gain | 10 dBd |
| Height (Max) | 23.8 in |
| Mounting Type | Pole Mount |
| Number of Bands | 1 |
| Power - Max | 200 W |
| RF Family/Standard | General ISM |
| Termination | N Type Female |
