Description

General part information

ANT-W63-FPC-SAH150M4

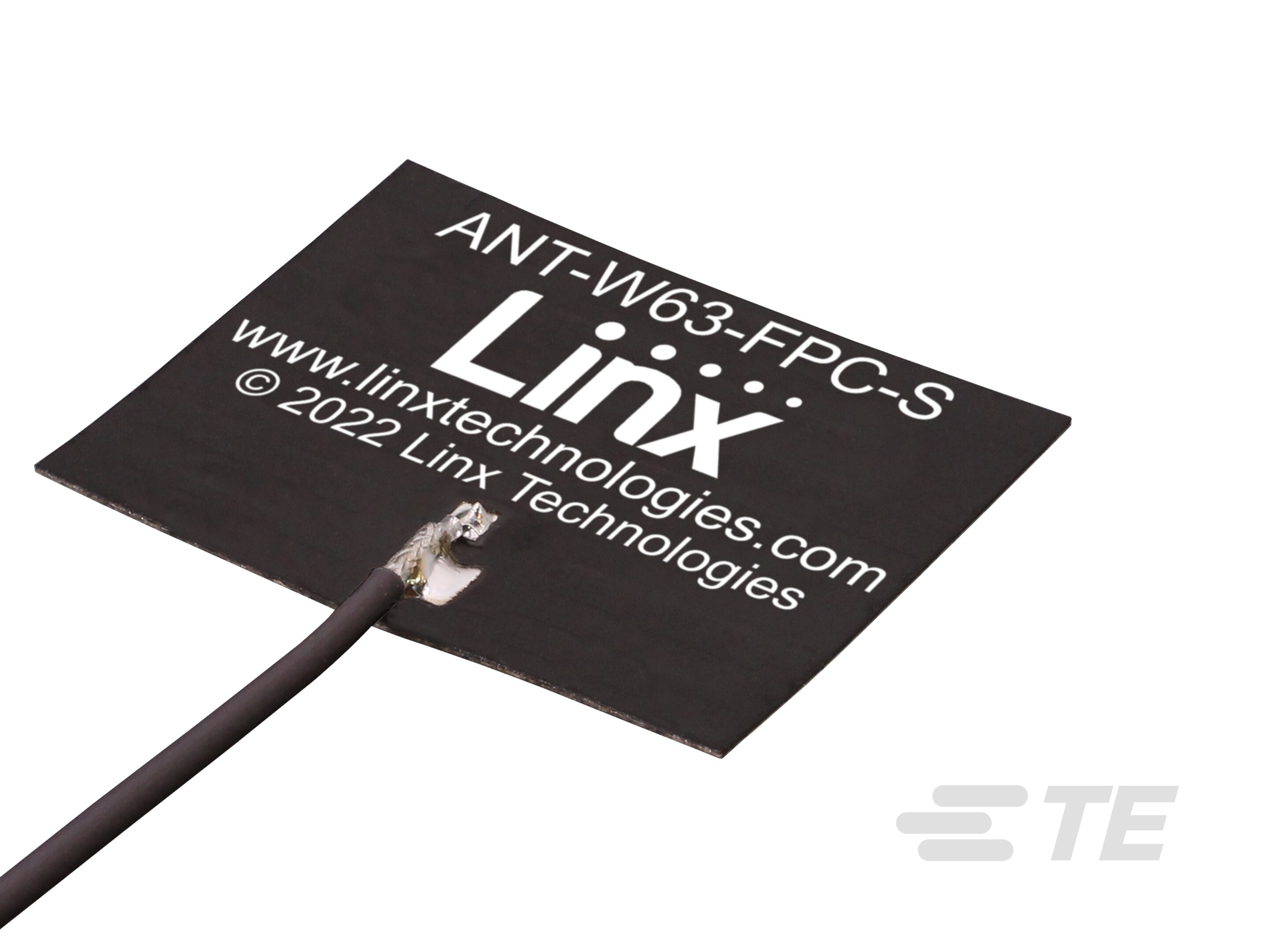

Flexible PCB (FPC) Antenna, Triple Band, Wi-Fi, Internal/Embedded Mount, Adhesive Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-W63-FPC-SAH150M4
Antenna TypeFlat Patch
ApplicationsWi-Fi 4, Wi-Fi 5, U-NII, Wi-Fi 6E, Wi-Fi 6, Bluetooth, ISM, 802.11b/g/ac/ax, Zigbee™
FeaturesCable, 150mm
Frequency (Center/Band)6.5375GHz, 5.5225GHz, 2.45GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.895 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Frequency Range (Band 3) Maximum7.125 GHz
Frequency Range (Band 3) Minimum5.95 GHz
Gain6.3 dBi, 7.2 dBi, 0.6 dBi
Height (Max)0.004 in
Mounting TypeAdhesive
Number of Bands3
Power - Max2 VA
RF Family/Standard802.15.4, Bluetooth, General ISM, WiFi
TerminationIPEX MHF4, I-PEX MHF4
VSWR2.4, 3.4
VSWR Maximum3.4
VSWR Minimum2.4
