TERM BLOCK PLUG 24POS 90DEG 5MM

Connectors, Interconnects

0395238824

Active

Molex

TERM BLOCK PLUG 24POS 90DEG 5MM

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395238824

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Gold
Current - UL	15 A
Features	Positions Stamped, Retention Latches (Wire Side)
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	1.02 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	24 pos
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plug Wire Entry Angle	90 °
Positions Per Level	24
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Strip Length	5 mm

039523 Series

...

Part	Plug Wire Entry Angle	Contact Mating Finish	Features	Operating Temperature (Min)	Operating Temperature (Max)	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Number of Levels	Color	Current - UL	Number of Positions	Termination Style	Pitch	Type	Voltage - UL	Positions Per Level	Mounting Type	Housing Material	Torque - Screw	Wire Strip Length	Material Flammability Rating	Contact Material	Insulation Height
Molex 0395233902	90 °	Gold	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	2	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	2	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395233911	90 °	Gold	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	11	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	11	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395232503	270 °	Gold	Retention Latches (Non-Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	3	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	3	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395233416	90 °	Tin	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	16	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	16	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395233519	90 °	Gold	Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	19	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	19	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395233422	90 °	Tin	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Black	15 A	22	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	22	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395238311	90 °	Tin	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Green	15 A	11	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	11	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in

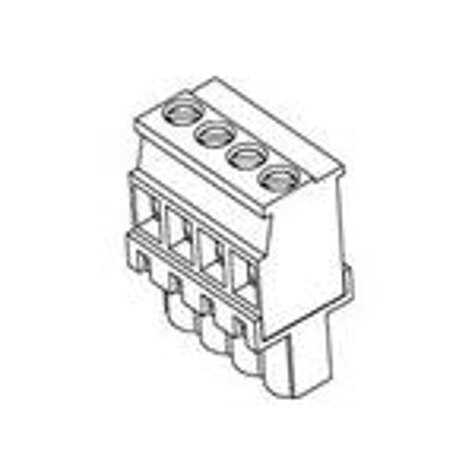

Molex 0395237915	270 °	Gold	Positions Stamped Retention Latches (Non-Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Green	15 A	15	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	15	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395238911	90 °	Gold	Positions Stamped Retention Latches (Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Green	15 A	11	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	11	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in
Molex 0395237011	270 °	Tin	Retention Latches (Non-Wire Side)	-40 °C	105 °C	12 AWG	25.5 AWG	1	Green	15 A	11	Screw - Rising Cage Clamp	0.197 in	Female Sockets Plug	300 V	11	Free Hanging (In-Line)	Nylon 6/6 PA66 Polyamide	0.56 Nm	5 mm	UL94 V-0	Phosphor Bronze	1.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	216	$ 19.84	1w

CAD

3D models and CAD resources for this part

Description

General part information

039523 Series

24 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 90° Free Hanging (In-Line)

Documents

Technical documentation and resources

0395238824 | Datasheet

Datasheet
