VDRH10G025BSE
ActiveVishay Dale
VARISTOR 39V 1KA DISC 12MM
VDRH10G025BSE
ActiveVishay Dale
VARISTOR 39V 1KA DISC 12MM
Description
General part information
VDRH10G025BSE

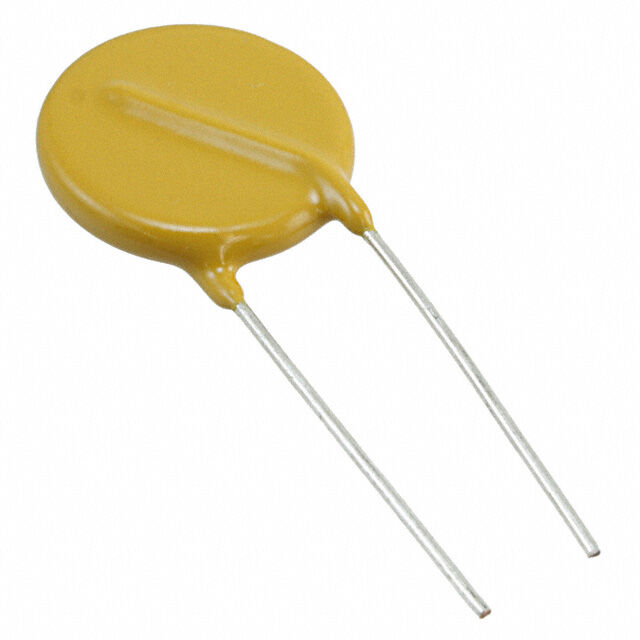

39 V 1 kA Varistor 1 Circuit Through Hole Disc 12mm
Technical Specifications
Parameters and characteristics for this part
| Specification | VDRH10G025BSE |
|---|---|
| Capacitance | 2600 pF |
| Current - Surge | 1000 A |
| Energy | 5.6 J |
| Maximum AC Volts | 25 V |
| Maximum DC Voltage | 31 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 12 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 42.9 V |
| Varistor Voltage (Min) | 35.1 V |
| Varistor Voltage (Typ) | 39 V |
