171506-2

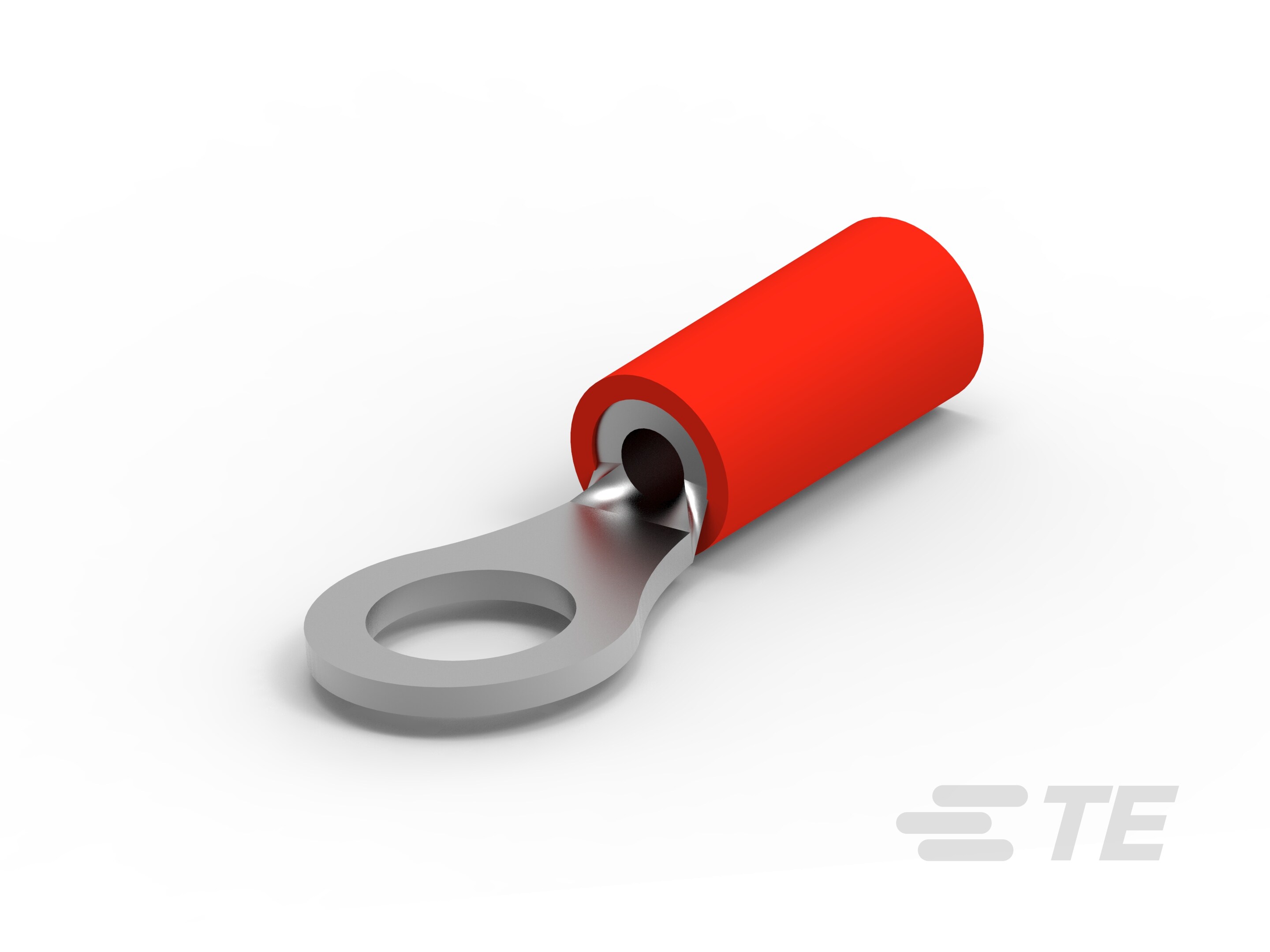

Closed Ring Tongue Terminal, 22 – 18 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG
Technical Specifications
Parameters and characteristics for this part
| Specification | 171506-2 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 0.823 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.031 in |
| Width - Outer Edges | 0.311 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
