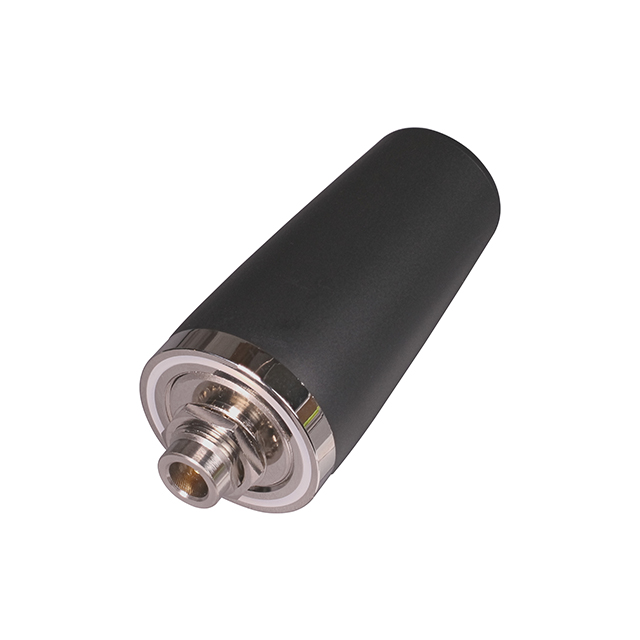

AC15101-2NJB
ActiveThe Antenna Company
RF ANT 2.45GHZ DOME N FEM PAN MT
AC15101-2NJB
ActiveThe Antenna Company
RF ANT 2.45GHZ DOME N FEM PAN MT
Description
General part information
AC15101-2NJB
RF ANT 2.45GHZ DOME N FEM PAN MT
Technical Specifications
Parameters and characteristics for this part
| Specification | AC15101-2NJB |
|---|---|
| Antenna Type | Dome |
| Applications | Zigbee™, WLAN, IoT, 802.11b/g, ISM, Bluetooth, Wi-Fi, ZigBee |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 3.5 dBi |
| Height (Max) | 3.228 in |
| Ingress Protection | IP65, IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| Return Loss | -12.3 dB |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination | N Type Female |
| VSWR | 1.6 |
