55843-1
ActiveTE Connectivity AMP Connectors
CONN SPLICE 14-22 AWG CRIMP
55843-1
ActiveTE Connectivity AMP Connectors
CONN SPLICE 14-22 AWG CRIMP
Description
General part information
55843-1

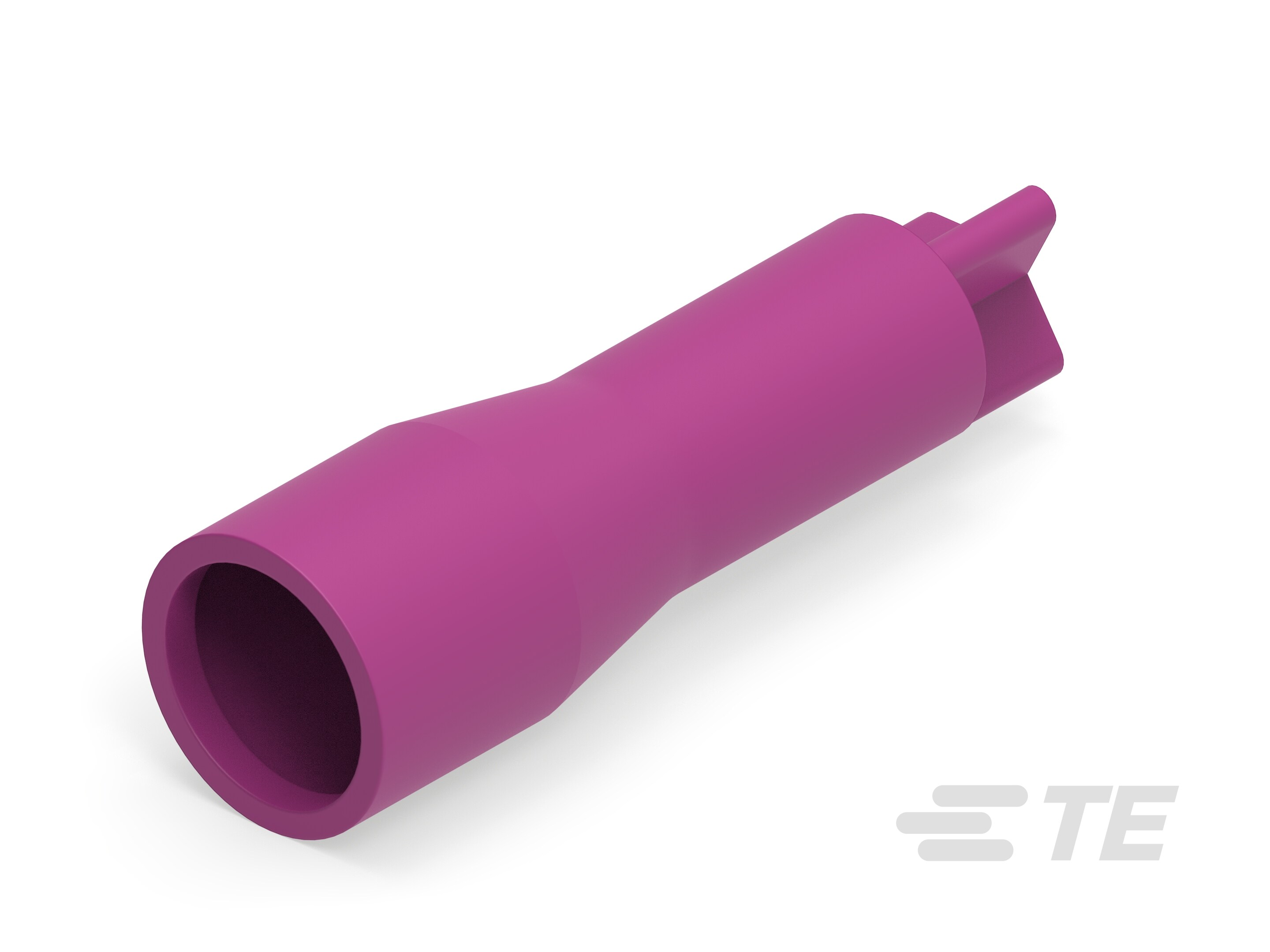

Closed End Splice, 22 – 14 AWG, .3 – 2 mm² Wire, .509 – 5.18 kcmil, 509 – 5180 CMA, Copper, Purple, 23.88 mm [.94 in] Length, Loose Piece
Technical Specifications
Parameters and characteristics for this part
| Specification | 55843-1 |
|---|---|
| Color | Purple |
| Insulation | Fully Insulated |
| Number of Wire Entries | 1 |
| Terminal Type | Single Opening, Butt Splice, Closed End |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
