FMC0142214-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 1
FMC0142214-12
ActiveFairview Microwave
CBL ASSY TYPE NPLUG-TYPE NPLUG 1
Description
General part information
FMC0142214-12

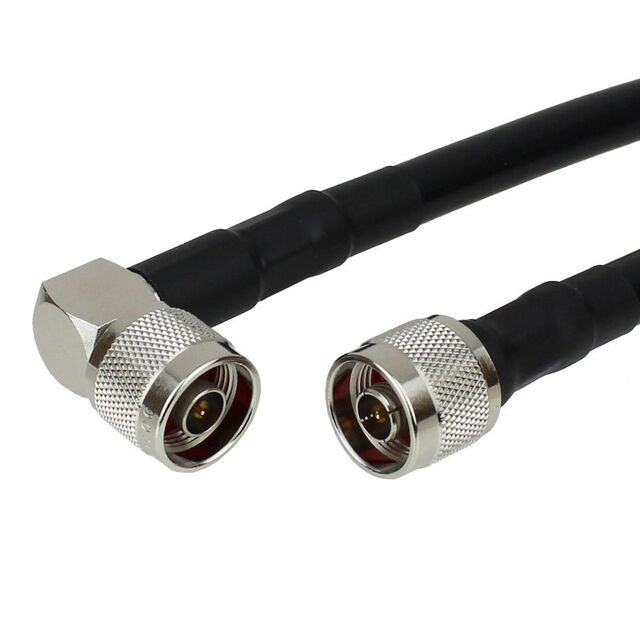

Cable Assembly Coaxial N-Type to N-Type RG-214 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0142214-12 |
|---|---|
| 1st Connector | N-Type Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type |
