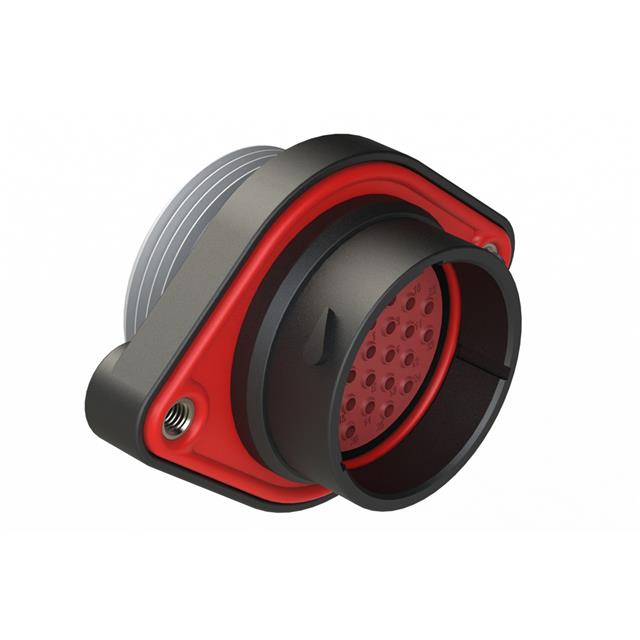

CIRCULAR CONNECTOR, IP67, IP69K, DURAMATE AHDP SERIES, PANEL MOUNT RECEPTACLE, 31 CONTACTS

Find alt

Alpha

AHDP02-24-31PT-WTA

Active

McGill Microwave Systems

CIRCULAR CONNECTOR, IP67, IP69K, DURAMATE AHDP SERIES, PANEL MOUNT RECEPTACLE, 31 CONTACTS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AHDP02 Series

DuraMate™ AHDP environmentally sealed, multi-pin, heavy duty, plastic, circular connector series provides an economical quick-connect bayonet locking system manufactured to withstand the challenges and complexities of harsh environment off-road applications. Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain-relief for jacketed cable ranges.

Technical Specifications

Parameters and characteristics for this part

Specification	AHDP02-24-31PT-WTA

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	31
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shell Size - Insert (Maximum)	31
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Type	For Male Pins

AHDP02 Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Contact Size	Note	Contact Type	Connector Type	Shielding	Primary Material	Orientation	Housing Color	Mounting Type	Shell Material	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Mounting Feature	Type	Shell Size - Insert Length	Shell Size - Insert Width	Contact Shape	Insert Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Features
