HQCEMM150GAH6A
ObsoleteKYOCERA AVX

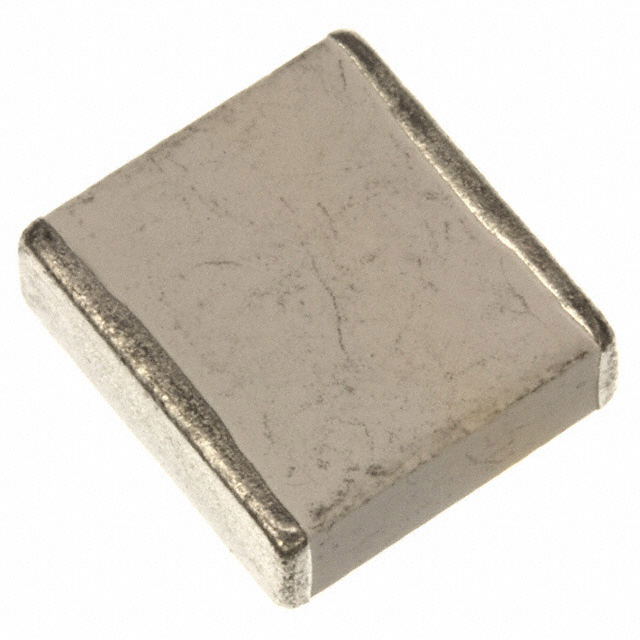

CAP CER 15PF 7.2KV P90 3838
HQCEMM150GAH6A
ObsoleteKYOCERA AVX
CAP CER 15PF 7.2KV P90 3838
Description
General part information
HQCEMM150GAH6A
15 pF ±2% 7200V (7.2kV) Ceramic Capacitor P90 3838 (9797 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | HQCEMM150GAH6A |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 15 pF |
| Features | Low Loss, Ultra Low ESR, High Q, High Voltage |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 3838 (9797 Metric) |
| Size / Dimension Length | 0.38 in |
| Size / Dimension Width | 0.38 in |
| Temperature Coefficient | P90 |
| Thickness (Max) | 0.17 in |
| Tolerance | 2 % |
| Voltage - Rated | 7200 V |
