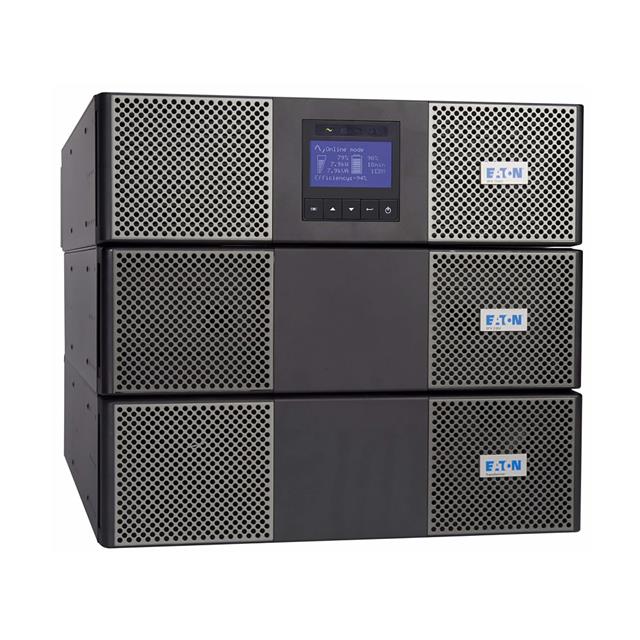

Specification	9PX8KTF5

AC Outlets (Count)	20 count
Applications	General Purpose, Industrial Control
Approval Agency	cUL
Backup Time - Max Load	3 minutes
Form	Rackmount, Tower
Height	15.3 in
Input Connector	Hardwired
Media Lines Protected	RS-232
Output Connector	NEMA L6-30R, NEMA 5-20R
Output Connector Quantity (NEMA 5-20R)	18
Output Connector Quantity (NEMA L6-30R)	2
Power - Rated (VA)	8 kVA
Power - Rated (W)	7.2 kW
Size / Dimension Length	17.3 in
Size / Dimension Width	30 in
Type	Online (Double Conversion)
Voltage - Input	240 VAC, 230 V, 220 VDC, 200 VAC, 208 VAC
Voltage - Output (1)	120 VAC
Voltage - Output (2)	200 V
Voltage - Output (3)	208 V
Voltage - Output (4)	220 V
Voltage - Output (5)	230 V
Voltage - Output (6)	240 V
Voltage - Output (7)	250 V
