XS218AAMAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSORS XS,
XS218AAMAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSORS XS,
Description
General part information
XS218AAMAL2

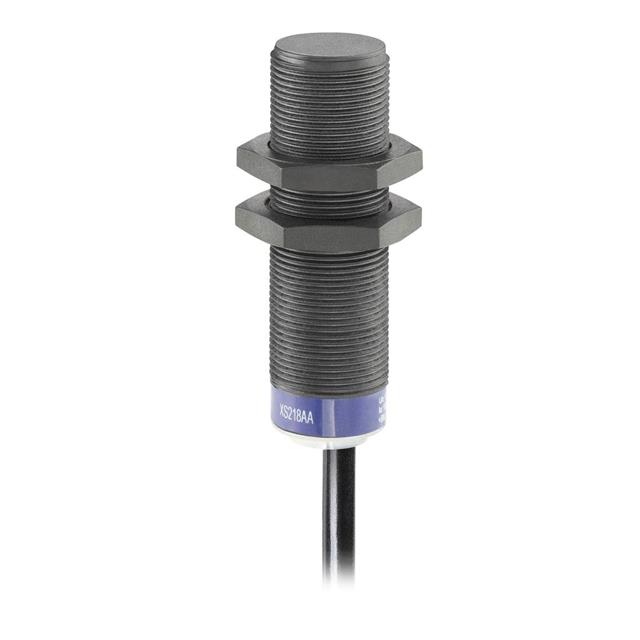

Inductive Proximity Sensor 0.472" (12mm) IP68, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS218AAMAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Polyphenylene Sulfide (PPS) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.472 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
