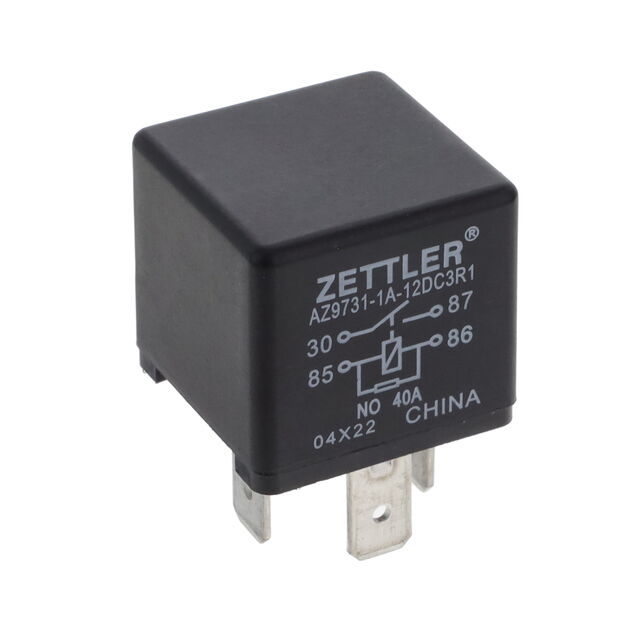

AZ9731-1A-12DC3R1
ActiveAmerican Zettler
RELAY AUTOMOTIVE SPST 40A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ9731-1A-12DC3R1 |
|---|---|
| Coil Current | 133.3 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 40 A |
| Features | Resistor, MINI-ISO |
| Mounting Type | Socketable |
| Must Operate Voltage | 7.8 VDC |
| Must Release Voltage | 1.8 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.70 | |
| 10 | $ 1.51 | |||
| 25 | $ 1.45 | |||
| 40 | $ 0.93 | |||
| 50 | $ 1.40 | |||
| 80 | $ 0.88 | |||
| 100 | $ 1.35 | |||
| 400 | $ 1.26 | |||
| 800 | $ 1.22 | |||
| 1200 | $ 1.19 | |||
| 5200 | $ 1.11 | |||
Description
General part information
AZ9731 Series
RELAY AUTOMOTIVE SPST 40A 12V
