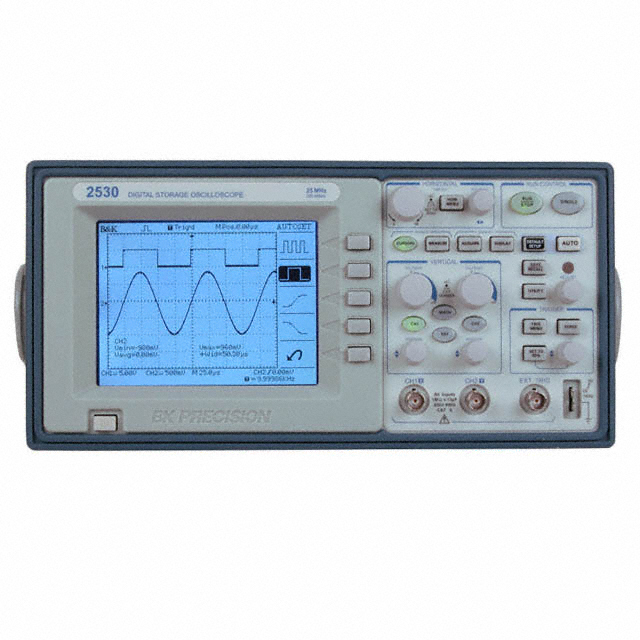

2530
ObsoleteB&K PRECISION
OSCOPE 25MHZ DIGITAL STORAGE
2530
ObsoleteB&K PRECISION
OSCOPE 25MHZ DIGITAL STORAGE
Description
General part information
2530
25 MHz Bench, Digital Oscilloscopes USB Interface LCD - Monochrome Display 2 Channel CAT II 300V Record, Playback, Save, Trend
Technical Specifications
Parameters and characteristics for this part
| Specification | 2530 |
|---|---|
| Analog Channels | 2 |
| Bandwidth | 25 MHz |
| Channel Types | Analog |
| Channels (Count) | 2 |
| Display Type | LCD - Monochrome |
| Function | Record, Save, Trend, Playback |
| Includes | USB Cable, Software |
| Input Impedance (Capacitance) | 13 pF |
| Input Impedance (Resistance) | 1 MΩ |
| Interface | USB |
| Probe Attenuation | 10 ratio |
| Probe Count | 2 |
| Probe Type | Passive |
| Rise Time (Typ) | 14 ns |
| Sampling Rate (Per Second) | 250 MHz |
| Type | Digital, Bench |
| Voltage - Input (Max) (CAT II) | 300 V |
| Voltage - Input (Max) Category | CAT II |
| Voltage - Input (Max) Rating | CAT II |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
