ZL30702LDG6
ActiveMicrochip Technology
DUAL CHANNEL IEEE1588 SYNCHRONIZ
Deep-Dive with AI
Search across all available documentation for this part.
ZL30702LDG6
ActiveMicrochip Technology
DUAL CHANNEL IEEE1588 SYNCHRONIZ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZL30702LDG6 |
|---|---|
| Differential - Input:Output [custom] | True |
| Differential - Input:Output [custom] | True |
| Input | CML, LVDS, HCSL, LVPECL |
| Main Purpose | Ethernet |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CML, LVCMOS |

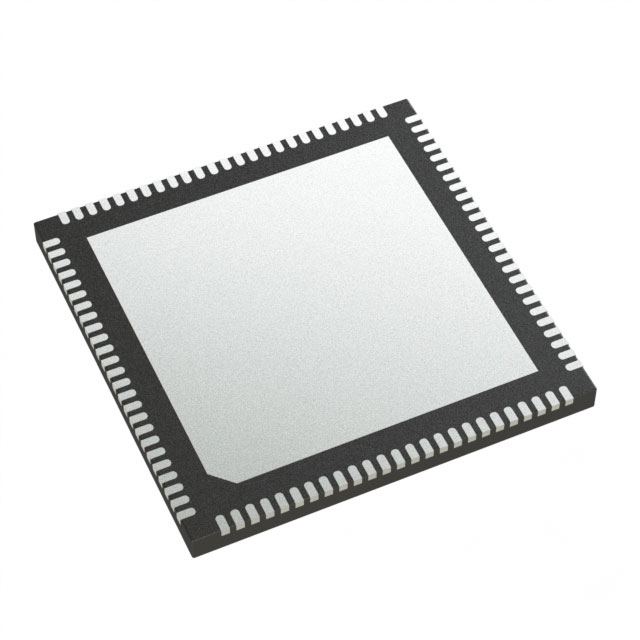

| Package / Case | 100-VQFN Dual Rows, Exposed Pad |
| PLL | True |
| Ratio - Input:Output | 5:8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZL30702 Series
DUAL CHANNEL IEEE1588 SYNCHRONIZ
| Part | Ratio - Input:Output | Input | Package / Case | Mounting Type | Output | PLL | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL30702LDG6 | 5:8 | CML, HCSL, LVDS, LVPECL | 100-VQFN Dual Rows, Exposed Pad | Surface Mount | CML, LVCMOS | 4 | 85 °C | -40 °C | Ethernet |
Description
General part information
ZL30702 Series
Ethernet Clock Synthesizer IC 4 Output 100-aQFN (10x10)
Documents
Technical documentation and resources
No documents available
